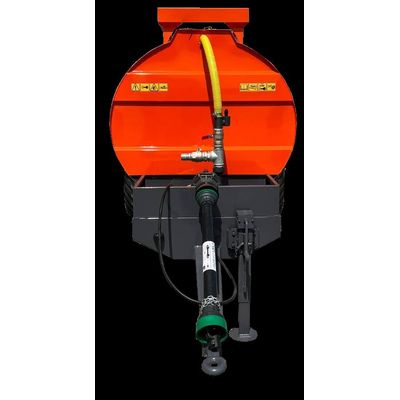

ERDALLAR - Model TNK-50-1 -5 TON SINGLE AXLE WATER TANKER

LOADING CAPACITY: 5000 kg

TANK CAPACITY: 5000 kg

TANK LENGTH: 3300 mm

DIAMETER: 1450 mm

TANK SIDE WALL THICKNESS: 2,5 mm

TOTAL LENGTH / WIDTH / HEIGHT mm: 5250/2137/1896 mm

WHEEL TRACK WIDTH: 1600 mm

MAXIMUM PUMP EFFICIENCY (TON/HOUR): 36/HOUR

MAXIMUM FILL TIME: 12 MIN

TIRES: 12,5/80-15,3

TRACTOR POWER REQUIREMENT HP/KW: 70 / 52
