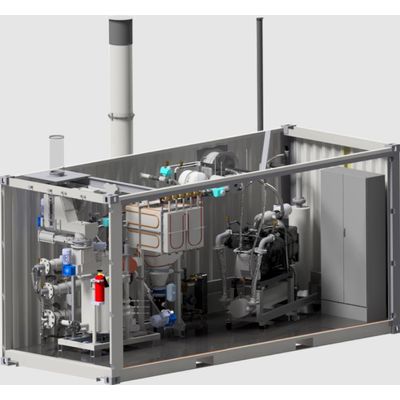

50 kW Wood Chips (E5)
The E5 uses inexpensive woodchips. After wood gasification, a CHP unit provides for the generation of electricity and heat, as in the E4. The plant is particularly suitable for forestry and agriculture.
Most popular related searches
Nominal power
50 kWel and 120 kWth
Fuel
Wood chips EN14961-1, P16-P45, 8% - 10% humidity
Fuel consumption
Ca. 45 – 48 kg/hrs*
Total efficiency
85%*
Electric efficiency
25%*
Thermal efficiency
60%*
Max. Flow/return temperature
90°C / 60°C (5000l/h) Return max. 65°C
Nominal voltage
400 V, 200 V
Operation hours
Up to 8000 hrs/a**
Control unit
Fully automatic operation, 24/7 remote monitoring
Case type
20 ft HC-Sea Container, L 6,058 m x W 2,438 m x H 2,869 m
Commissioning duration
Ca. 2 days**
