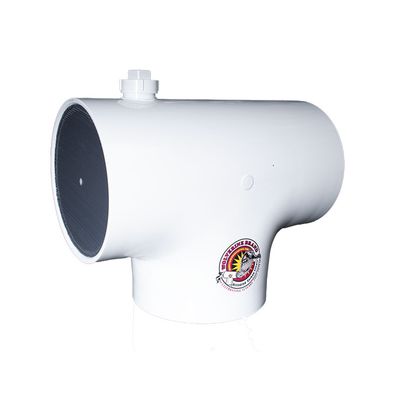

Wolverine - Model MT-50 -50 LB Mega T Sewage Vent Odor Filter 200CFM Max
The patented 50LB Mega "T" (Patent # US 8,273,162), is a "T" style odor adsorber comes standard with 50LBs (2 Cubic feet) of Darco H2S Carbon. The 50LB Mega "T" utilizes our unique perferated disc carbon containment system with flow-through "moisture wicking" design for longer carbon bed life. This filter looks as good as it functions. the 50LB mega "t" is available for 4", 6", 8,10 and 12" vents. L=25.625, H= 19.750, W= 13.750. Standard Inlet= 12" ASTM D1785 PVC Pipe standard.
Most popular related searches
sewage vent odor filter
odor control system
industrial odor control system
catalytic carbon
odor adsorbent
H2S control
PVC pipe
odor control
industrial odor control
odor filter
- Application: Atmospheric Vents/Low Flow Vents.
- Overall Length: 25.625"
- Overall Height: 19.75"
- Overall Width: 13.75"
- Standard Inlet sizes: 12" Socket; ASTM D 2665
- Optional couplings: 3" to 12" Van Stone Flange/3" to 10" Socket
- Max CFM: 200 CFM providing .6 seconds contact time
- Carbon Capacity: 50LBS/2 cubic feet *
- Carbon Type: Catalytic
- H2S Breakthrough Capacity gH2S/cc carbon; .15 (Min) ASTM D 6646
* The low apparent density of catalytic carbons means fewer pounds must be purchased to fill the required volume. Since H2S removal Capacity is based on bed volume, this results in direct cost savings.
- 12" Socket Coupling (Comes Standard)
- 6" Socket Coupling + $321.92
- 8" Socket Coupling + $358.33
- 10" Socket Coupling + $415.93
- 6" Flange Coupling + $737.85
- 8" Flange Coupling + $819.25
- 10" Flange Coupling + $545.82
- 12" Flange Coupling + $170.82
