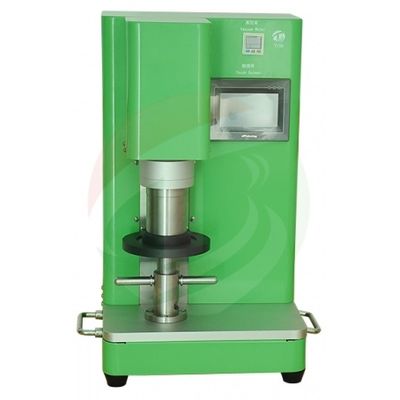

TOB New Energy - Model TOB-XJB-500 -500ml Compact Dual-Shaft Lab Scale Planetary Vacuum Mixer

• Item No.: TOB-XJB-500
• Order(Moq): 1set
• Payment: L/C,T/T,Western Union, Paypal
• Product Origin: China
• Shipping Port: XIAMEN
• Lead Time: 7days

TOB-XJB-500 Planetary vacuum mixer is one high efficiency equipment with vacuum molding and dispersion function,suitable for the battery lab research of anode and cathode electrode slurry mixing process , as well as for the powdered and ceramic material materials mixing.

Due to the fact that the stirring is completed in the vacuum state, there’s without bubble , so the fillibility of materials and the compactness of model are improved.

• Vacuum environment, can eliminate the bubbles generated in the mixing process effectively ,with vacuum system.
• Standard equip of biaxial planetary stirring structure, screw impeller, according to the size of mixing tank to configure the different mixing shafts and combination .
• Reverse and corotation mixing function design , can achieve high viscosity slurry make high speed mixing,have good mixing uniformity.
• Multi speed operation can be carried out,you can set the speed and time of each stirring .
• Bracket design, easy to operate, to ensure the safety of the vacuum mixing process
• Small size, can save space
• Exquisite appearance, with three-dimensional geometric design, simple and beautiful .

• Model: TOB-XJB-500
• Voltage : AC220V 50HZ/ 110V 60HZ
• Power : 200W
• Stirring speed : MAX600 rpm
• Multi segment function : There segment speed can be set
• Fitting volume : 500ml stainless steel vacuum mixing tank
• Stirring time : 0~600min can be set
• Overall size(L*W*H)
• About 330m×320mm×570mm
• Net Weight : About 35kg
• Remark :
• 1 Built in vacuum pump, vacuum value -0.08Mpa.
• 2 Standard double screw propeller, others according to the design of tank.
• Warranty : One year limited and list time support
