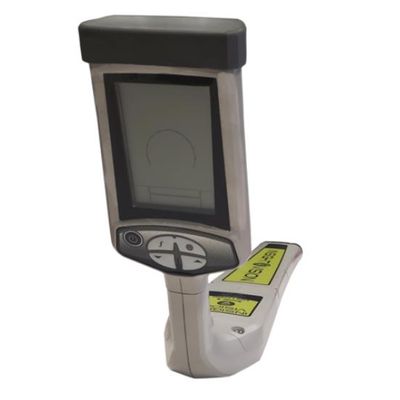

Insight Vision - 512Hz Underground Pipe Locator

Underground Pipe Locator (512Hz) offers utility professionals flexibility. It allows users to adapt the system to their specific needs. Multiple frequency options allow the user to accurately locate with a minimal interference. In addition, it provides the ability to continue locating past faults and around conduit bends. Similarly, passive frequencies identify “live” and charged lines by their naturally occurring electromagnetic fields.>

Locate With Confidence

The Underground Pipe Locator (512Hz) offers multiple passive frequencies — 50Hz, 60Hz, Radio Frequency, Cathodic Protection Rectifier & CATV. For instance, it can perform line locating without the use of a transmitter. Our easy-to-use underground pipe locator is great for locating camera inspection systems, sondes and utility lines. However, the Insight Vision 512Hz pipe locator is also an effective solution for sewer inspection and drain cleaning. Available with 512Hz, 640Hz, 815Hz, 8.192kHz & 33kHz sonde locating. In addition, our locator is able to track any manufacturer’s camera sonde system (512hz). Moreover, it has the ability to locate utilities with the addition of a line transmitter. Also, a depth measurement. with peak signal response, allows the user to reduce interference and maintain the location of the sonde or system. The Insight Vision Underground Pipe Locator is designed and manufactured to make utility locating accurate and simple. As well, it works great when paired with one of our sewer inspection systems.

• Underground Pipe Locator (512Hz) Operating Frequency:
• Sonde Mode: 512Hz, 640Hz, 815Hz, 8.192kHz & 33kHz
• Line Mode: 131 Khz, 82.315 kHz, 65.536 kHz, 32.768 kHz, 8.192 kHz, 4.010 kHz, 815 Hz, 797 Hz, 640 Hz & 512 Hz
• Antenna Mode: Peak & Left/Right Guidance
• Display Indicators: Backlit LCD bar graph, battery condition, signal strength, depth measurement, line orientation, mode and function indicators
• Audio Indication: Variable pitch response, 4 volume selections including mute.
• Current Measurement: Display indicates relative current
• Power Source: 6 “C” cell batteries
• Battery Life: Continuous: 20 hours
• Intermittent: 65 hours
• Signal Strength: LCD bar graph, absolute signal strength 0-999
• Gain Control: Manual gain adjustment & automatic centering
• Dynamic Range: 126 dB
• Depth Measurement: Push-button to 30’ & triangulation method
• Operating Temperature: -4º F to +133º F (-20º C to +55º C)
• Size: 30.3” x 9.4” (77 cm x 24 cm)
• Weight: 4.2 lbs. (1.9 kg)

• Weight: 12 lbs
• Dimensions: 40 × 15 × 15 in
