HED - Model CL-713 and CL-714 -5Inch and 7Inch Programmable Displays
Our 5” and 7" displays feature a minimalistic design for an updated look and feel. Made for harsh environments, our displays can be mounted in the cab or outside your vehicle. Button and no-button versions available.
- Programmable - With Crank Storyboard tools
- Sealed enclosure - External mounting (IP67*)
- Mounting - Rear (no visible mounting holes)
- Sunlight readable - 5" or 7" TFT color LCD displays
- Pixel format - WVGA 800x480
- Backlight - LED with 800 (713) / 1000 (714) nit brightness
- Viewing Angle – IPS 80/80/80/80 degrees
- Touch screen – Optional PCAP
- Microprocessor - Cortex A7 ARM running at 800MHz
- OS - Linux
- Memory - 8GB FLASH / 512MB RAM
- Real Time Clock - Internal Battery (15 year life - typical)
- CAN ports - Qty: 2
- USB ports – Qty: 1 OTG
- Ethernet ports - Qty: 1

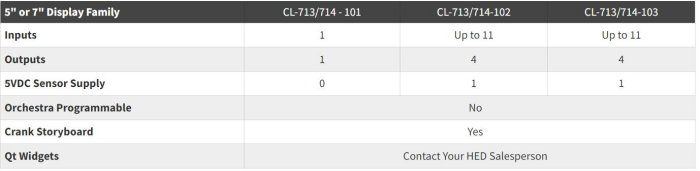

- Additional Inputs and Outputs - Optional
