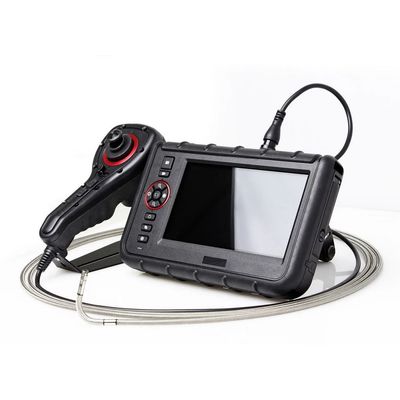

USA Borescopes - Model 1000J-6-5000 -5m Length - Joystick Articulation – 6mm Videoscope

• 7″ TFT LCD
• 7″ videoscope, protected by oil and scratch resistant tempered glass
• Superior image quality
• Sharp, Clear and Bright
• Rugged and robust
• 1m drop resistance, IP57 protection(main system)
• Long duty hour
• Rechargeable Li-battery lasts for 6 hours
• LED backlight function keys
• Great for dark environment without sunlight or other light sources
• Interchangeable Side View Tip
• USB camera
• Support webcam device to remote access for data sharing and real-time diagnose
• USB reader
• Simply connect to your PC to retrieve your data from the SD card, card reader is not necessary
• 3 easy ways to capture pictures
• -button on the system
• -articulation probe
• -remote control
• Neck/hand strap
• convenient and great for operation
• Light weight
• only 1.3kg
• Water and Oil Resistant Probe
• 3.17x Digital Zoom

System Specifications:

• System dimension: 240x154x47 mm
• System weight: 1.3kg (2.86lb)
• Display:7″ TFT LCD (WVGA)
• Power:Rechargeable Li battery 3.7V
• Power supply:  AC 100-240V 50-60Hz
• Power consumption:  DC 5V 3A
• Battery Life:   5 hours (3 hours charge to full)
• Drop & Water proof :  IP57 resistant
• Drop test: 1m
• Video out:  NTSC & PAL / AV OUT
• Storage:SD card(SDHC), up to 32G
• Video / Photo file format :   .avi / .jpg
• Video / Photo resolution :  640 x 480
• Working temperature:   0? ~ 60?
• Storage temperature: 0? ~ 60?

Two way articulation tube:

• Probe head diameter :  6.0mm
• Tube length:  5m
• Articulation:   All way
• FOV:  90 degree
• Depth of Field:  12 to 150mm
• LED:  front/side
• Buttons: Snapshot / LED+/ LED-
• Button lock:   lock up buttons functions
• Insertion tube: E e air  -20ºC to 80 ºC
• Water: 10 ºC to 30 ºC

• Weight: 20 lbs
