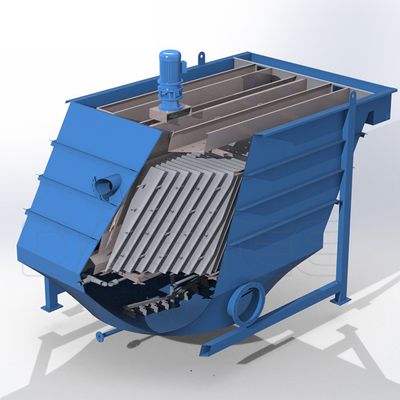

DAGYEE - Model DCL-020 -5m3/H Lamella Clarifier

Dagyee loading rates are 5 to 15m3/h separation of precipitation lamella clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.
