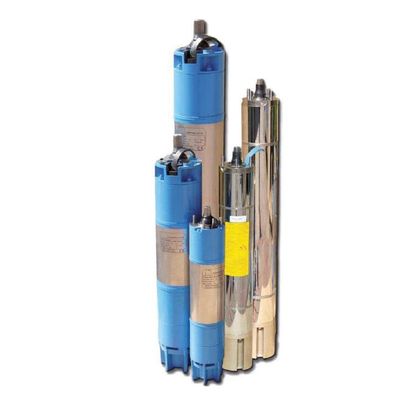

CS Waterpumps - Model 6MA - 8MA - 10MA -6"- 8" -10" Submersible Motors with Water Bath
Series of submersible 6 "- 8" - 10 "submersible motors in water bath, asynchronous 2 poles, with squirrel cage rotor. Wrapped in PVC wet wire, easily retractable. Robust and oversized engines to withstand heavy loads and last over time. The radial bearings and the axial bearing are Mitchell and lubricated by the water inside the motor; this allows a long period of operation without any maintenance. Mechanical seal mounted on the crankshaft which allows a particular resistance in the presence of sand.
Most popular related searches
- Wet-wire winding in PVC (on request PE2 + PA);
- Outer coating and lid in stainless steel;
- Upper support and lower support in G25 cast iron;
- Upper and lower radial bearings in Graphite;
- Axial bearing in Graphite - AISI 303;
- Mechanical seal in SiC - NBR - AISI304;
- Non-toxic filling liquid: water + glycol;
- Sand guard in NBR - AISI304;
- Motor insulation class Y / B - IP 68 protection;
- Mast protrusion and coupling dimensions to NEMA standards;
- Easily removable and retractable;
- Possibility of starting a star triangle Y / A.
- Maximum number of starts now granted: 20 (6MA - 10MA) - 7 (8MA);
- Axial thrust: 15500N from 5.5 to 25 hp (6MA) / 20000N from 30 to 35 hp (6MA) / 25000N from 40 hp (6MA) / 27500N from 50 to 60 hp (6MA);
- Axial thrust: 45000N from 30 to 150 hp (8MA);
- Axial thrust: 60000N from 125 to 200 hp (10MA);
- Maximum immersion depth: 150 m (6MA);
- Maximum immersion depth: 100 m (8MA - 10MA);
- Minimum flow of water: 0.30 m / s (6MA);
- Minimum flow of water: 0.50 m / s (8MA - 10MA).
