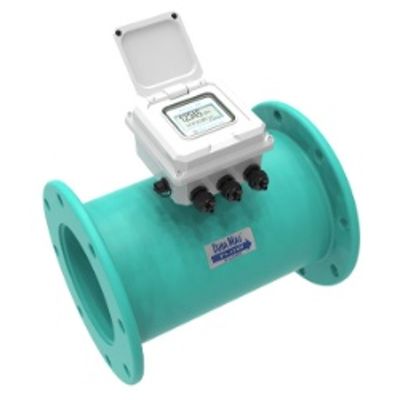

Dura Mag - Model KGL/CFS- DM06-B-KGL-CFS-0 -6" Battery Powered No Outputs Magnetic Flowmeter
Battery Powered Magnetic Flowmeter for Today`s Irrigators and Water Managers. This 6" Dura Mag flanged mag meter includes a field-replaceable battery with a 5 year battery life, 3 year battery warranty, and an internal data logger to track water usage more accurately. The meter arrives pre-calibrated with the internal data logger set to track water usage every 12 hours in Kilogallons (KGL) total units of measurement, with a rate unit of Cubic Feet p/Second (CFS). Not available for shipping into Idaho.
Most popular related searches
magnetic flow meter
data logger
flow meter
electromagnetic flow meter
water management
cable separator
pipe lining
flow velocity
- Items with this mark may be considered hazardous under some shipping conditions.
- If necessary, we will change your selected shipping method to accomodate these items.
- 30122-53 Dura Mag IOM Manual
- 30122-59 Dura Mag Spec Sheet
- 30122-61 Dura Mag Quick Start Installation Guide
- 30123-55 Dura Mag Brochure
- 4-20mA Output Cable: No Outputs
- Accessories: Ship W/Out Options
- Accuracy: +/- 1% or ± 0.075% of standard full scale
- Cable Connection: Option for quick connect cables for easy installation
- Data Storage: Data Logger (standard with all models), minimum of five years of data stored
- Display: 2-Line LCD display (no backlight), 16 characters per line
- Non-volatile memory
- Anti-reverse totalizer (standard)
- Total (to 9 digits of precision)
- Flow Rate and Velocity (to 5 digits of precision)
- Two alarms: low battery and empty pipe Note: To preserve battery life a button on the front of the converter activates the display
- Installation Requirement: 2D Upstream / 1D Downstream (Pipe Run Requirements)
- Line size: 06"
- Options: Two alarms: low battery and empty pipe
- Data logger cable (sold separately)
- DC power w/battery backup
- Pulse & 4 20mA output
- Annual verification / calibration
- Outputs: Pulse Output: Digital pulse (open collector) output for volumetric and/or alarm
- Analog Output: 4-20mA (not galvanically separated from the power supply). DC powered option only.
- Power: Battery: Standard: two 3.6V lithium-thionyl chloride (Li-SOCI2) D size batteries. Batteries are field replaceable
- DC Power: Linear power supply 10-35VDC, 2.4W
- Battery Guarantee: Guaranteed 3-year battery life
- Power/Output Options: Battery, No Outputs
- Pressure Range: 150 psi
- Rate unit: CFS
- Service and Support:
- The Dura Mag has an estimated life of 10 years, and requires no regular maintenance other than replacing the battery pack.
- Batteries are covered under warranty for 3 years, and are expected to last 5 years.
- When you need replacement batteries, place an order for a replacement battery pack ($55) .
- The batteries come with an information sheet (also available online at mccrometer.com) that walks you through step by step to remove and reinstall the batteries. There is also a video on youtube for your convenience. The process should take no more than 10 minutes.
- Temperature: Operating: -4° to 140°F (-20° to 60°C)
- Storage: -40° to 149°F (-40° to 65°C)
- Unit/Rate: KGL, CFS
- Warranty: 5 Year
- What`s included?:
- 30122-53 Dura Mag IOM Manual
- 30122-59 Dura Mag Spec Sheet
- 30122-61 Dura Mag Quick Start Installation Guide
- 30123-55 Dura Mag Brochure
