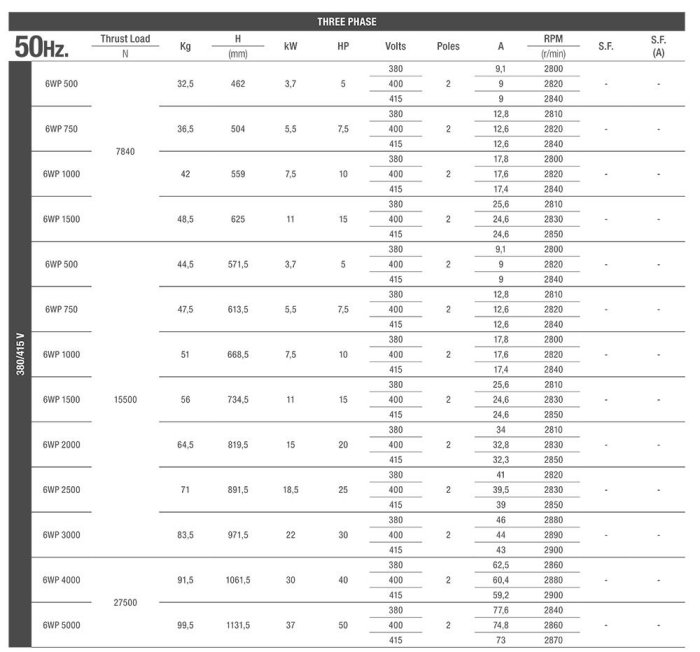

Sumoto - Model 6WP Series -6 Inch Encapsulated Submersible Motor

Encapsulated resin filled stator. Upper and lower bracket: Cataphoresis treated cast iron. Motor case: SS 304. Motor shaft: SS 431. Shaft end and coupling: NEMA Standard. NEMA standard power side bracket: UNF threaded holes upon request. Kingsbury thrust bearing. Winding: enameled copper – Class F insulation. Degree of Protection: IP68/Class B insulation. Max temp. 35° with water cooling flow min. 0.16 m/s. Max depht immersion: 350 m. Nos. of start per hour: max 20 for D.O.L. type. Mechanical seal: SiC/SiC. Sand slinger. Coolant: water and propylene glycol. EPDM flat blue cable – AWG stranded version upon request. Motor cable length: 4 m (3 wires plus ground). Voltage variation: +/-10%. Starting method: D.O.L / Star-Delta. Suitable for horizontal operation.
