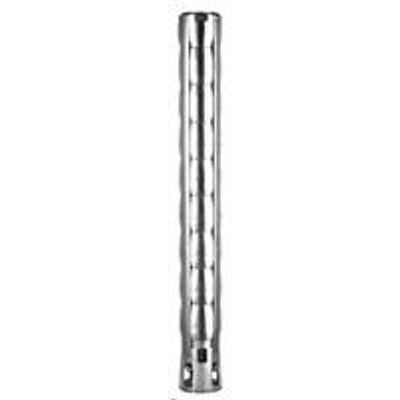

Soggia - Model 6FX -6 Inch Stainless Steel Borehole Pumps
FromSoggia Srl
Series of submersible pumps 6" completely in AISI 304, designed and built for maximum resistance against sand and other impurities. Materials certified for use in drinking water that allow the pump to run dry without even deteriorate. The supports are made of steel AISI 304, obtained with casting process, ensure extreme robustness and reliability to the product. 6FX pumps are supplied with standard NEMA 4” coupling up to 5,5 hp power. With higher powers they are provided with standard NEMA 6”. Upon request available completely in AISI 316.
Most popular related searches
borehole pump
borehole pumping
fire fighting system
lift station system
lift station
corrosive water
borehole
deep well
water industry
fire fighting
- Flow up to 1250 l/min (75 m³/h )
- Head up to 708 meters
- 2850 r.p.m.
- Motor power up to 45 kw
- Water temperature: from 0°C to 120°C
- Maximum quantity of sand: 50 g/m³
- Installation in vertical position
- Overall diameter including the cable cover: 141 mm
- Outlet ports threaded 2” ½ G & 3” G (option 4” from 6FX 850)
- Coupling flange NEMA
- Radial version up to 6FX 520
- Semi-axial version from 6FX 850
- Suction from deep well of no-corrosive water
- Industrial and domestic use
- Lifting stations
- Irrigation systems
- Aqueducts
- Pressurization and fire-fighting systems
