Soggia - Model 6MA -6 Inch Water Filled Rewindable Motors

SHARE

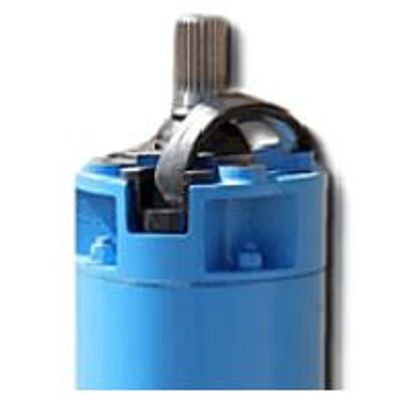

Series of submersible motors 6 "rewindable water bath, asynchronous 2 poles, with squirrel-cage rotor. Winding wire wet PVC, easily retractable. Durable MOTORs oversized to withstand heavy loads and long life. The radial and axial Bearing are Mitchell and lubricated by water inside the motor; this allows a long period of operation without any maintenance. Mechanical Seal mounted on driving shaft which allows a particular strength in the presence of sand.

Most popular related searches

water filled rewindable motor

borehole pumping

submersible motor

6” submersible motor

bearing lubrication

Winding: up to 30kw winding wire wet PVC —from 40kw PE2+PA
Outer jacket and cover bottom of stainless steel
Upper and lower Motor Bracket in Cast iron G25
Upper and lower radial bearings in Graphite
Bearing axial in Graphite - AISI 303
Mech. Seal in SiC - NBR - AISI304
Atoxic Filling liquid : water + glycol
Sand protectios in NBR - AISI304
Motor insulation class Y / B - Protection IP 68
Shaft extension and coupling dimensions according NEMA standards
Easily removable and retractable
Available in star delta starting Y / Δ

Voltage tolerance: ± 10%
Water temperature: 30°C
Maximum starts per hour: 20
Axial charge: 15500N from 5,5 to 25 hp
20000N from 30 to 55 hp
25000N for 40 hp
27500N for 50 & 60 hp
Maximum immersion depth: 150 m
Minimum flow rate speed: 0,30—m/s
Working position: vertical
