Bema A/S

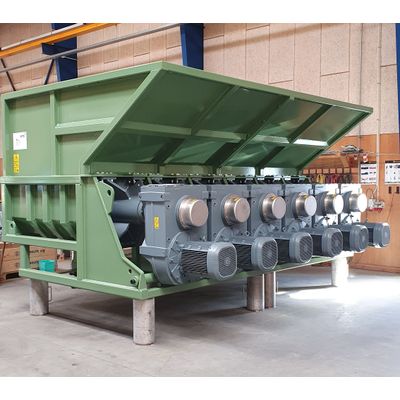

ACTA - Model 31374-AR730502 -6-Screw Crusher for Processing Mineral Wool Material
FromBema A/S
Features: Equipped with outlet screw conveyor with closed protection cover (mounted at site) Equipped with Protection cover for motor/gear (mounted at site) Extended filler hopper for easier loading capacity (mounted at site) Hardmetal welded on each of the 6 screws Reliable gear and motor setup Complete control cabinets, with touchpanel from Siemens and frequency convertors.
Most popular related searches
waste handling
screw crusher
control cabinet
screw conveyor
industrial waste recycling
industrial recycling
mineral processing
industrial waste
waste recycling
waste treatment
- Weight: 17.000 kg
- Hopper inlet dim.: 4250x2000mm.
- Hopper volume. approx.: 10 m3
- Outlet capacity: 6-15 ton/hour
- All outlet capacities are approximated and depends on working conditions and type of material to be processed.
- Please contact sales for ACTA for more exact information.
- Screw speed: Approx. 12 rpm
- Motor power: 6 x 18,5 kW
- Electrical conn.: 3x400 V - 50 Hz
- Prefuse (App.): 400 Amp
- House: Bin
- Transported material: Insulation, Minerals
- Industry: Insulation, Recycling, Waste handling
- Surface treatment: Carbon steel – painted
- Product type: ACTA crusher
