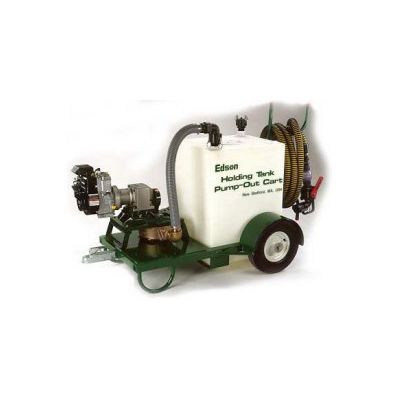

Edson - Model 28206 -60 Gallon Waste Collection Cart For Holding Tank Pump Outs
Features: The 28206 (60 gal) pump out cart is an ideal way to provide pump out service throughout the marina without installing plumbing. Boat yards frequently need to pump out a boat either when in dry dock or when pulling the boat for the season. The portable design can be integrated into a plumbing infrastructure to provide a fixed station though out the marina and become portable as needed. Dependably Simple, turns on a Dime with 33" wide Cart and Tow Dolly and with large tires and cart tow hitch. Rugged: Marine-Grade Components. Flexible, Durable Hose Spill Proof: Tank fills and empties from the top. Durable Design: Easy self Maintenance.Most popular related searches
waste collection
diaphragm pump
waste collection cart
waste collection system
sewer system
check valve
ball valve
sight glass valve
marine pump
hose pumping
Performance Features
- No Clog, No Spill, No Smell
- Easy Fill & Off Load Operation
- Pump Out Rates To 20 GPM
- Self Priming Suction from Heights Up To 12 ft (7.6m)
- Easily Moved Around With Trailer Dolly or Electric Cart
Design Features
- Easy To Use-Low Maintenance
- Integral Hose Rack
- Bronze Diaphragm Pump
- Welded Aluminum Cart With Stainless Axle & Pneumatic Tires
- Quick Clamp Plumbing & Hose Assemblies
- Electric Powered With Electric Start/Stop or Gas Engine
- Commercial Roto Molded Tank
- Adjustable Ball Hitch For Use With Electric Carts
Edson’s Diaphragm Pump Out Cart is a convenient, easy to use waste collection system that is a totally self contained cart. It is ideal for marinas that cannot connect a pump out direct to a shore side sewer system but need to collect and transport the waste within the marina. The pump out cart uses the Edson unique plumbing and hose assemblies that allows for the tank to be safely emptied by the pump while virtually eliminating the chance of accidental spillage. The pump and hose assemblies are available as separate items for those who want to use them with their own tanks and carts, trailers or boats.
Pump Performance:
- Max. Volume - 38GPM /144 LPM
- Suction Lift-to 15 ft/4.57m
- Disharge Head-to 15 ft/4.57m
- Dry Suction Lift -12 ft/3.65m.
Pump Construction:
- Marine Bronze Pump Body* Nitrile Diaphragm and Valves
- Stainless Steel Hardware
- Aluminum Frame
- Inlet - 2" Male NPT
- Discharge - 2" Female NPT
- Standard Electric - 3/4HR Single Phase, 115/230 Volt, 60 HZ, 55 RPM, TEFCGearmotorwith a Stop/Start Switch & 25ft Extension Cord
- Stancjard Gasoline -3.5 HP Engine
Pump Out Hose Assembly:
- 1"/2" Polyflex Hose
- 90° Ball Valve
- • Sight Glass/Check Valve
- Quick Clamp Adapter
- Complete Set of Deck Adapters
- 25 ft Length Standard
- 50 ft Length Optional
Collection Tank:
- 60 Gal. Rotational Molded High Density Polyethylene, Waste Tank
- Two 2" FNPT Through Tank Fittings
- One 1/2" Through Tank Fitting
- 6" Access Port With Threaded Lid
Cart:
- Welded Aluminum
- 16" Pneumatic Tires
- 17/8" Ball Hitch With Adjustable Length Tong
- Tow Dolly Is Included
