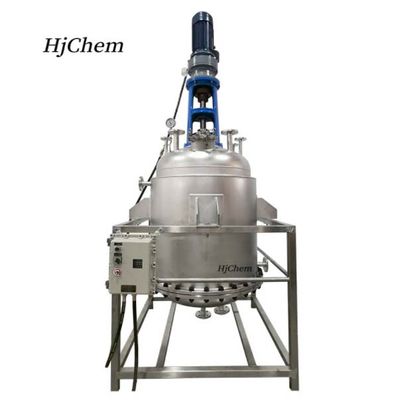

Hjchem - 600L Industrial Stainless-steel Solid-phase Synthesis Reactor
Our 600L Industrial Stainless-steel Nutsche Filter Reactor is engineered for demanding large-scale peptide manufacturing and other critical solid-phase syntheses. Built for performance, durability, and operator safety, this reactor integrates reaction and filtration in a single, robust unit.1. Vessel: Single wall, double wall or triple wall available
2. Working pressure: Full vacuum to 0.05/0.1Mpa
3. Working temperature: -80°C ~ +220°C
4. Filter device: PTFE, glass or stainless-steel, pore size 0.1um to 200um
1. Optimized Capacity: 600L working volume for significant batch production.
2. Premium Construction: Double-layer vessel body made entirely of corrosion-resistant 316L stainless steel, ensuring product purity and longevity.
3. Versatile Lid Design: Features an 8-port lid for easy integration of agitators, thermometers, condensers, reagent addition lines, inert gas inlets, sampling valves, and monitoring devices.
4. Robust Agitation System: Driven by a powerful 3KW, 1:23 ratio explosion-proof motor coupled to an explosion-proof variable speed gear reducer. Equipped with a heavy-duty 316L stainless steel frame anchor stirrer supported by a substantial 60mm shaft diameter for reliable mixing of viscous slurries and resin beds.
5. Integrated Filtration: High-quality 316L stainless steel filter plate with a precise 40-60 micron pore size enables efficient solid-liquid separation (filtration, washing, drying) directly within the reactor vessel (Nutsche principle).
6. Safety First: Critical components (motor, reducer) are certified explosion-proof, making this reactor suitable for use with flammable solvents common in SPPS.
