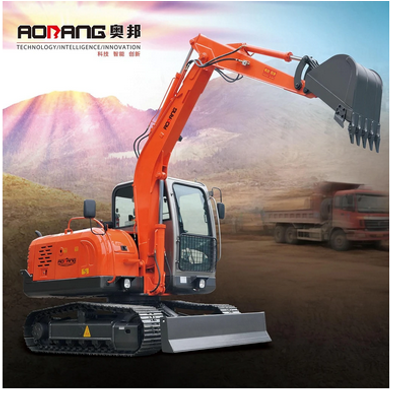

Topper - Model AB75L -6.3 Ton Crawler Excavators
AB75L Crawler Excavators - a formidable and high-performing selection. Model No.: AB75L, boasting an operating weight of 6300 kg and powered by a 58.8 kW engine, delivers exceptional results on any task.With a 1750 mm tail swing radius, it ensures excellent maneuverability. The 0.25 m³ bucket capacity enables efficient material handling. Adapt to different working conditions with a maximum travel speed of 4.5 km/h in high mode and 2.5 km/h in low mode. Experience a maximum digging reach of 6000 mm and a digging depth of 3280 mm, ideal for various excavation tasks. Conquer challenging terrains with a gradeability of 35°/70%. Rely on the AB75L as your trusted ally for top-notch construction performance.
- Model No.: AB75L
- Products: Crawler Excavators
- Operating Weight: 6300 kg, 6.8 Ton
- Engine Power: 58.8 kw
- Tail Swing Radius: 1750 mm
- Bucket Capacity: 0.25 m³
- Max Travel Speed(high/low): 4.5/2.5 km/h
- Max Digging Reach: 6000 mm, 6.00 Meters.
- Max Digging Depth: 3280 mm, 3.28 Meters.
- Gradeability: 35 °/70%
Range of operation
- Boom length: 3030mm
- Arm length: 1850mm
- Maximum Digging Reach: 6000mm
- Maximum Digging Depth: 3280mm
- Maximum Digging Force: 45KN
- Maximum Digging Height: 5400mm
- Maximum Dumping Height: 4000mm
- Back-end radius of gyration: 1750mm
Dimensions
- (Length*width*height) Transport Dimensions: 5200*2100*2650mm
- Distance From Outer Edge of The Arm To Swing Motor: 3600mm
- Wheel base: 2060mm
- Track Gauge: 1570mm
- Width Of Crawler: 400mm
- Ground clearance of counterweight: 780mm
- Min ground clearance: 280mm
Tech performance and specification
- Angle of rotation: 360°
- Machine weight: 6300kg
- Engine model: YUNNEI 4102
- Rated Power: 58.8KW
- Rated Speed: 2200r/min
- Hydraulic system working pressure: 21Mpa
- Hydraulic system flow: 120L/min
- Variable piston pump: 28ml*2/r
- Walking speed(High speed/low speed): 4.5/2.5km/h
- Grade Climbing ability: 70%/35°
- Volume Of Bucket: 0.25m³
- Swing Overload Pressure: 16Mpa
- Full circle swinging time: 5.5s
- Fuel Quantity : ≥4L/h
- Capacity Of The Fuel Tank: 110L
- Hydraulic Tank Capacity : 110L
