Sub Miniature Single Shear with a Crystal Size of ø6.3mm and a Contact Face of 12 x 10mm with a suitable connection of your choice

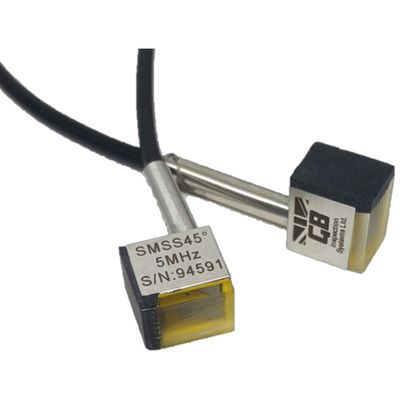

GB - Model SMSSi -6.3mm Crystal Shear Ultrasonic Probe
The Sub Miniature Single Shear Probe is designed for precision ultrasonic testing, featuring a crystal size of 6.3mm in diameter and a contact face measuring 12 x 10mm. This probe offers customizable connection options to suit various testing requirements. It is suitable for both standard and high-temperature intermittent testing, up to 300°C depending on the variant. The probe is particularly useful in applications requiring detailed structural analysis and flaw detection in materials, making it a versatile tool for non-destructive testing (NDT) professionals. Additional options include extended cable lengths and custom angle adjustments for material velocity, enhancing its adaptability to specific testing conditions. The probe supports multiple connector types, such as BNC, Lemo, Microdot, and Subvis, to ensure compatibility with existing equipment.Most popular related searches
