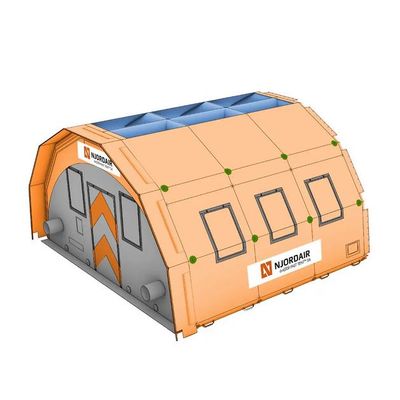

Njordair - 6m Constant Air Fast Tent Module

Supplied as a 5m (16’) long module. Use it as a ‘standalone’ building or join multiple modules together (end walls are removable).

Sealed air Fast Tents are constructed from an inflatable framework with a single skin cover. The fire retardant coated PVC fabric is welded together using hot air or high frequency welding techniques which produces an air tight seam. This means it does not require constant inflation.

Buy from stock in our signature orange & grey colour scheme or ‘build your own’ and choose from 18 colours and customised external branding

Need something larger? We have Fast Tents up to 14m (46’) wide in our constant air range.

Dimensions:

• Length: 5m (16′)
• Width (outside): 6m (20′)
• Width (inside): 5.4m (18′)
• Height (outside): 3.15m (9’10”)
• Height (inside): 2.85m (8″6′)
• Packed Size: 1.2m x 1.2m x 0.9m (4′ x 4′ x 3′)
• Weight : 178Kg (392lbs)

Construction:

• Frame: Plato 1140gsm PVC (Flame Retardant) (M2) 30cm diameter tubes
• Side Walls: Gloss 620gsm PVC (Flame Retardant)
• End Walls: 2 x removable – 620gsm PVC (Flame Retardant)
• Roof: 620gsm PVC (Flame Retardant) with semi-transparent apex
• Module Connection: 7 x dutch lacing sections + rain cover

Standard Features:

• Windows: 8 x clear PVC windows – 60cm x 90cm (23″ x 35″)
• Access: 2 x pedestrian door – 1m x 2m (3’2″ x 6’5″)
• Fans: Sealed Air Fan with Automatic Pressure Sense + 2m (6′) hose
• Fill Points: 1 x inflation / deflation valve, 1 x pressure sense valve, 1 x pressure release valve
• Deflation Zips: n/a
• Internal Ties: 74 x webbing loops + 44 x Metal ‘D’ rings
• Document Pouch: 1 x 350mm x 350mm (14″ x 14″) clear external pouch in end wall
• Duct Holes: 4 x 300mm (12″) ducting holes with PVC ‘sock’ and tie

Anchors (Each side):

• High Level: 4 x multi directional webbing – 150Kg (330 lbs) capacity (red/green colour coded)
• Mid Level: 4 x multi directional webbing – 150Kg (330lbs) capacity (red/green colour coded)
• Ground Level: 4 x multi directional webbing – 150Kg (330lbs) capacity (red/green colour coded)

 Anchors (Each end):

• High Level: n/a
• Ground Level: 4 x multi directional webbing – 150Kg (330lbs) capacity

Standard Accessories:

• Transport Bag: Heavy duty PVC Transport Bag
• Repair Kit: 640gsm PVC material, glue, needle & thread
• Stakes: 300mm + 750mm (12″ + 29″) long reinforced steel
• Ties: 18mm (3/4″) polypropylene rope
•  Colours (Built to order): Choice of 12 colours
•  Branding / Logos:
• Side Walls: 2 x removable digitally printed PVC banners – 200cm L x 45cm H (6′ 6″ x 1′ 6″)
• End Walls: 2 x removable digitally printed PVC banners – 100cm L x 45cm H (3′ 3″ x 1′ 6″)
• Note:: Specification and dimensions may be subject to change without notice.
