Wopson - Model WPS-710D-C6 -6mm Ultra-Long Pipeline Tester Camera

Camera

• Control box
• Camera Size: ø6mm
• Sensor size: 1/4 inches
• Visual angle: 60°
• LED Lights Adjustable
• Camera working current: 100M;
• Camera Power: $literal
• Camera led: 4PCS White LED
• totalpixels:pal:710x576;
• ntsc:720x480
• Camera Glass Material: sapphire glass
• Camera housing material: Stainless steel
• Power: Lithium Battery V
• LED Display
• Battery power Display

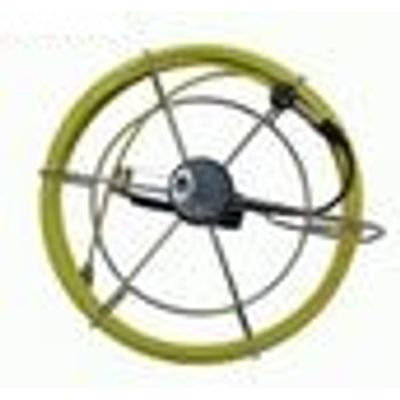

Coil

• Cable size: ø320mmx110 (H)
• Wire Material: Fiberglass rod
• Fiberglass length: 20 m (standard)
• Fiberglass Diameter: ø4.8mm
• Fiberglass Color: Yellow
• Total Power: 14W
• Charging time: 5 hours
• Protection Voltage: 8.1V
• 12v4000mah Lithium Ion
• Batteries (18650)
• Working hours: ≧ 260 minutes

Monitor

• Charger
• Display size: 7 inch TFT color display
• Monitoring total pixels: 1440x234
• Monitor Power: $literal
• OSD Language: English
• Picture: Up, down, left, right adjustable
• 16:9 and 4:3 mode
• Sunshade cover
• Input voltage: ac100-240v50/60hz
• Output: dc12v/1000ma
• DC Plug Diameter: 2.1 mm

Stent
Bracket size

1. Bracket 1:ø40mm
2. Bracket 2:ø80mm

Engineering box

• Size: l520xw435xh200mm
• Material: Fireproof board + aluminum alloy
• Empty box Weight: 3.4 kg

Specifications

• Camera housing material: Stainless steel
• Camera GALSS material: sapphire glass
• Visual angle: 120°
• Camera light Source: 12 High brightness white light LED
• Storage media: SD card (max 32G)
• Microphone Audio Recording
• Stereo headphone output
• Steel wire wheel wear-resisting joint
• Working temperature: -10〜50 degrees Celsius defrees,
• Relative Humidity Max 95%
• Storage temperature: 20-70 degrees Celsius,
• Relative Humidity Max 95%
