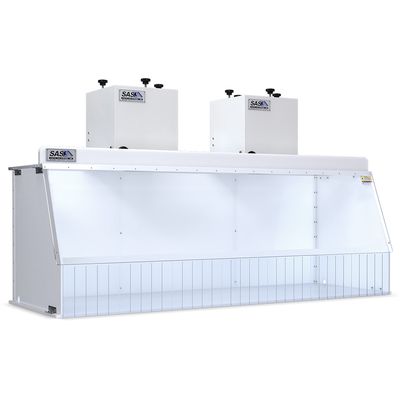

Sentry Air Systems - Model SS-370-DCH-D -70 in. Wide Dual Ductless Fume Hood
The 70” Wide Dual Ductless Fume Hood combines the powerful air flow of two air cleaners with a sturdy and compact enclosure for optimal respiratory and environmental protection. This fume hood helps protect the operator and the environment from hazardous fumes or particulate generated from applications performed within the hood.
Most popular related searches
ductless fume hood
fume hood
carbon filter
HEPA filter
magnehelic gauge
epoxy coating
hood filter
air cleaner
acid gas
hazardous fume
- Chemical fumes
- Pharmaceutical compounding
- Soldering applications
- Dust removal
- Biological applications
- Variety of applications requiring fume and dust removal
- Includes: variable speed controller (115V only), clear anti-static vinyl curtains, velometer, and LED light
- Optional: Magnehelic Gauge and hour counter
- Standard Sizes: 12”, 18”, 24”, 30”, 40”, 50”, 60”, and 70” (custom sizes available)
- Quiet operation
- Long filter life
- Simple, quick “no tool” filter change
- Portable and lightweight
- Reliable, low maintenance operation
- Hood Dimensions (D x W x H)
- Outer: 24” x 72” x 25”
- Interior: 23.5” x 70” x 24”
- Access Area: 8” x 70”
- Hood Material
- Sides: 0.25” white acrylic
- Base: 0.5” white high density polyethylene
- Top: 0.5” clear polycarbonate
- Front Window: 0.25” clear polycarbonate
- Blower Dimensions: 15.5”L x 13” W x 14.5” H
- Blower Material: 16 Ga. carbon steel with polyester epoxy coating on all surfaces
- Weight: 205 lbs
- Air Volume (approximately): 350 CFM per blower (varies with filter media)
- Inlet Velocities on High (approximately)
- Carbon Pre-filter + HEPA Filter – 100 FPM high, 25 FPM low
- Carbon Pre-filter + Heavy Duty Carbon Filter – 70 FPM high, 20 FPM low
- Electrical: 115/1/60, 2 amps; 220/1/50, 0.75 amps; 8’ grounded power cord with NEMA 5-15P plug
- Sound Level: 61 to 66 dba (low to high)
- Maximum Temperature: Operating temperature not to exceed 170° F
- Warranty: Limited two-year warranty from the date of shipment on defects due to materials or workmanship.
- Patent: # 5,843,197
- HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
- ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
- ULPA (up to 99.9995% efficiency on particles down to 0.12 microns)
- Activated Carbon
- Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
