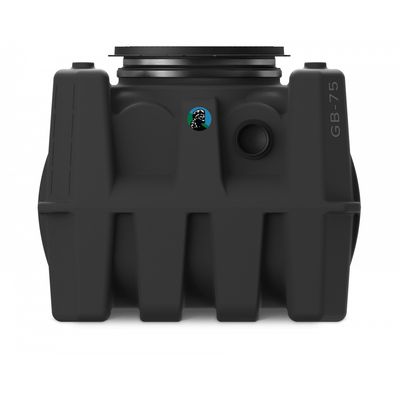

Schier Great Basin - Model GB-75 -75 GPM Hydromechanical Grease Interceptor
The GB-75 offers best-in-class certified grease capacity and 25% kitchen solids waste capacity. It can be installed above grade (on the ground) or buried below grade (compatible with FCR2 riser to bring system to grade), as well as indoor or outdoor. The triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pumpout (PP3 compatibility).
RATINGS
75 GPM / 861 LBS
INDOOR / OUTDOOR
125 GAL
LIQUID CAPACITY
- Rugged polyethylene tank body
- No flow control required, first in the industry certified to Type D of the ASME standard
- Safety Star® access restrictor prevents accidental entry
- Fits through 36" doorways
Flow Rate/Grease Capacity
75 GPM (4.7 L/s) / 861 lbs (390.5 kg)
Solids Capacity 31 gal (117.3 L)
Liquid Capacity 125 gal (473.2 L)
Weight 190 lbs (86.2 kg)
Installation Location Indoor/Outdoor
TRIPLE OUTLET
Three outlets available for installation flexibility and optional pumpout port connection.
ON THE TANK
Product ID label with technical and certification details (also available inside the cover adapter)
"Made By" label featuring one of our product builders and the date your interceptor was built
