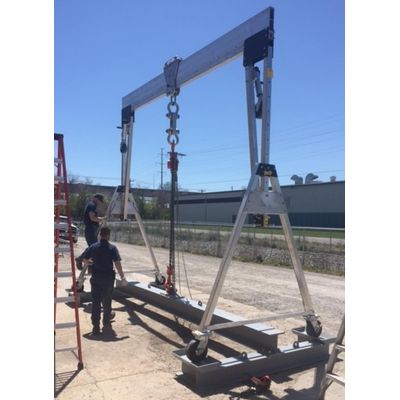

eme - Model 16500 -7.5 Ton Aluminum Gantry Crane
The erne 16500, 7.5 ton aluminum Gantry Crane with a maximum lift capacity of 16,500 lbs is our second highest rated capacity aluminum Gantry Crane. It offers a variety of potential beam lengths and heights. All eme aluminum Gantry Cranes are adjustable for both beam height and clear span. We`ve developed an extensive portfolio of aluminum designs and can customize our eme 16500 for your specific requirements.
eme 16500 Gantry Crane Models
All products are designed and tested to meet or exceed regulatory requirements and to focus on operator safety
Our products are designed to be intuitive, easy to use and operate without the need for complex rigging equipment or machinery
Our innovative designs can easily be moved under load or transported to off-site locations, minimizing the need for redundant equipment that can consume limited floor space
- Maximum Lift capacity of 16,500 lbs
- Lift Range of 97-139 inches
- Standard Beam length of 15 feet
- Maximum Beam Length of 15 feet
- Locking ‘surround-beam’ trolley
- Assembled weight of 955 lbs
- Load tested to 125% prior to shipment, inline with OSHA standard
- Mated 4-way locking casters
- Beam height & clear span adjustments
- Grade L9 plated fasteners
- Easy grip handles for height adjustment
- Aluminum billet handles on beam for easy carrying
- Welding performed by fully Certified Shop
- Maximum Lift capacity of 16,500 lbs
- We can customize minimum and maximum lift height, beam length, clear span, caster width, along with a number of other features
- We’ve optimized our designs to be easily customized, fitting our exact customer needs in an expedited manner. Don’t worry, custom doesn’t mean radically different pricing vs our standard models or lengthy delivery times
