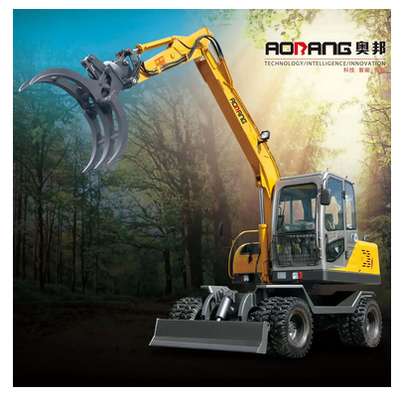

Topper - Model AB95Z -7.8 Ton Wheel Excavators
AB95Z Wheel Excavators with Grabber-a robust and highly efficient choice. Model No.: AB95Z, weighing 7800 kg and equipped with a 65 kW engine, ensures remarkable performance.With a 1980 mm tail swing radius, it offers excellent maneuverability. The Grabber Max Open reaches up to 1250 mm, allowing versatile load handling. Capable of grabbing up to 800 kg at its Max Radius Grabbing Weight, it ensures productive operations. Travel at a maximum speed of 25 km/h for efficient mobility. Capable of grabbing up to 800 kg at its Max Radius Grabbing Weight, it ensures productive operations. Travel at a maximum speed of 25 km/h for efficient mobility. Reach impressive dumping heights of 4650 mm and conquer challenging terrains with a gradeability of 30°/58%. The AB95Z is your reliable partner for various construction tasks.
- Model No.: AB95Z
- Products: Wheel Excavators with Grabber
- Operating Weight: 7800 kg, 7.8 Ton
- Engine power: 65 kw
- Tail Swing Radius: 1980 mm
- Grabber Max Open: 1250 mm
- Max Radius Grabing Weight: 800 kg
- Max Travel Speed: 25 km/h
- Max Dumping Height: 4650 mm
- Gradeability: 30 °/58%
Range of operation
- Boom length: 3670mm
- Arm length: 1850mm
- Max radius of capture: 7000mm
- Max. Opening Width of Grab: 1250mm
- Min. Opening Width of Grab: 80mm
- Max. RADIUS Grabing Weight: 800kg
- Grapple rotation angle: 360°
- Max dumping height : 4650mm
- Back-end radius of gyration: 1980mm
Dimensions
- (Length*width*height)Transport Dimensions: 6450*2330*2930mm
- Wheel base: 2400mm
- Track(Front/rear): 1660mm/1580mm
- Ground clearance of counterweight: 1060mm
- Min ground clearance: 265mm
Tech performance and specification
- Angle of rotation: 360°
- Machine weight: 7800kg
- Engine model: YUNNEI 4102
- Rated Power: 65kw
- Rated Speed: 2400r/min
- Hydraulic system working pressure: 20Mpa
- Hydraulic system flow: 150L/min
- Variable piston pump: 71ml/r
- Grapple swing speed: 12r/min
- Walking speed: 25km/h
- Grade Climbing ability: 58%/30°
- Tyre model: 8.25-16
- Swing Overload Pressure: 20Mpa
- Full circle swinging time: 5.5s
- Fqt Fuel Quantity : ≥4L/h
- Capacity Of The Fuel Tank: 110L
- Hydraulic Tank Capacity : 110L
