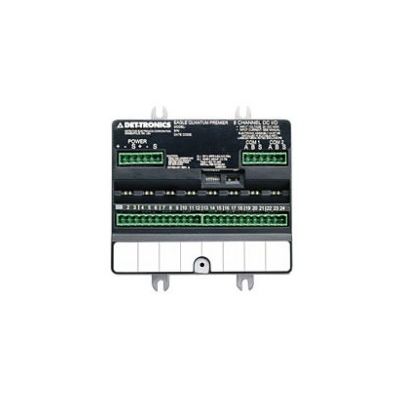

Eagle Quantum Premier - Model EQ3700DCIO -8 Channel Discrete Input/Output Module (DCIO)

The DCIO module provides eight channels of configurable input or output points that can be programmed for supervised or unsupervised operation. Each input point can accept fire detection devices such as heat, smoke, or unitized flame detectors. Each output point can be configured for signaling or releasing output operation. Each channel on the module is provided with individual indicators for active and fault conditions.

Each channel on the DCIO module can be configured as an input to accept a connection from manual alarm stations, heat sensors, smoke sensors, pressure sensors, or as an output for notification or releasing.

Both input and output circuits can be configured as either a supervised or an unsupervised point. Each input point is also assigned a circuit type, such as: Alarm, Trouble, Supervisory, Gas High or Low Alarm, or other. The DCIO module reports to the EQP Controller and activates the appropriate static or user logic in the EQP Controller.

The DCIO module supports ANSI/NFPA Class A, Style 7 communications with the Eagle Quantum Premier Controller.

To ensure reliable system operation, the module continuously monitors its input and output circuits for opens and short circuit conditions. The Eagle Quantum Premier Controller also continuously monitors the status of the DCIO module as well as the status of each device connected to the DCIO module.

Led Indicators

LEDs on the front panel of the DCIO are provided for indicating device status conditions. The LED’s are tested upon power up to verify their operation. Red LEDs indicate an active condition. Yellow LEDs indicate trouble.

Mounting

The DCIO module is DIN rail or direct panel mountable for configurations requiring installation in NEMA or IP enclosures. DIN rail and mounting clip options must be specified at the time of order. Refer to the “Specifications” section for mounting arrangements and dimensions.

• Expands the capabilities of the Det-Tronics Eagle Quantum Premier system
• Monitors eight independent I/O channels
• Individual channels are configurable as an Input or Output
• Individual channels are configurable as supervised or unsupervised points
• Individual point Type is configurable for alarm/supervisory/other input styles, notification/releasing output
• Individual channel LEDs indicate Active and Fault status
• Provides remote I/O capabilities via LON/SLC
• Panel or DIN rail mounting
• Power LED display
• Plug-in wiring connectors
• Meets the requirements of NFPA 72
• RFI and EMI hardened (CE Marked).
