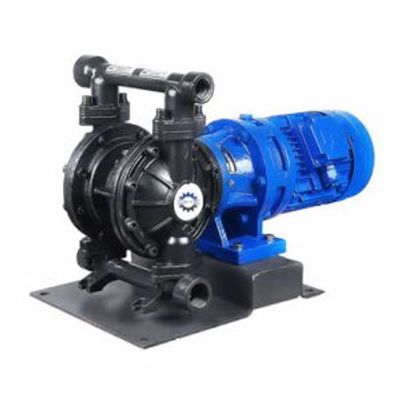

Saiken - Model SKD -/8" Electric Diaphragm Pump
The Saiken brand Electric Double Diaphragm Pump (EODD PUMP) can transfer the most corrosive media, is self-priming and sealless. Electric double diaphragm pumps withstand abrasive particles and even dry running,Double size pipe diameter, can support two sizes of external pipe!
3/8″ Electric Diaphragm Pump Max Capacity 3.4GPM
China Professional Electric Diaphragm pumps manufacturer! 10 mm / 3/8″ inlet/outlet,Max Flow: 12.8LPM. Materials of wetted parts:Cast steel, Ductile iron, Aluminum alloy, PP (polypropylene), Stainless steel 304 316L, Teflon, PTFE, PVDF.
Diaphragm and ball materials: PTFE, Teflon, Santoprene, EPDM, NBR, FKM
EODD 3/8″ 10MM Electric-Operated Double Diaphragm Pump
Materials of wetted parts:Cast steel, Ductile iron, Aluminum alloy, PP (polypropylene), Stainless steel 304 316L, Teflon, PTFE, PVDF
Diaphragm and ball materials: PTFE, Teflon, Santoprene, EPDM, NBR, FKM Up to 480 L/min Up to 7 bar
Options: Pressure switch, Built-on frequency inverter.
Electric Double Diaphragm Pump (EODD PUMP) are designed to handle moderately abrasive fluids and suspended solids for intermittent/on-demand and portable applications. They can easily pump slurry, solvents, and high viscosity liquids such as paints and inks. Pump with full bolt structure and wear – resistant corrosion – resistant materials,Good quality, Best price!
- 3/8 inch (10 mm) inlet/outlet
- Delivery up to 3.4 gpm (12.8 lpm)
- Easy-to-service air valve and ball checks
- Quick and easy assembly and disassembly design
- Easy to service air valve and ball checks
- Split manifold option to pump multiple fluids without mixing
- Every pump is tested prior to shipping
- Maximum Fluid Flow: 3.4 gpm (12.8 l/min)
- Maximum Fluid Discharge Pressure: 58 psi (4 bars, 0.4 MPa) / 100 psi (7 bars, 0.7 MPa)
- Maximum Size Pumpable Solids: 3/32 inch (2.5mm)
- Fluid Displacement Per Cycle: 0.04g (0.15 litres)
- Motor power: 0.55kw@4.0Bar, 0.75kw@7.0Bar
