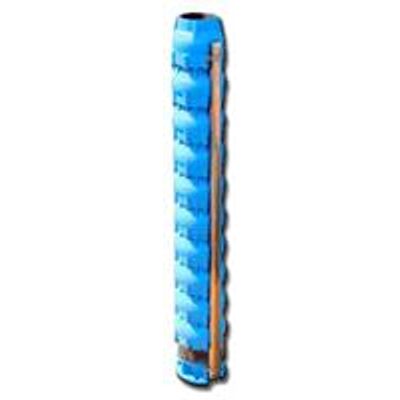

SoggiaModel 8GS -8 Inch Cast Iron Semi-Axial Borehole Pumps

SHARE

8” semiaxial submersible pumps in cast-iron, New concept of water pump with a single type of diffuser. Other feature is the new exagonal shaft that makes maintenance much easier. Rubber bush guides coupled with chromed bush with a strong thickness granting continuous duty even in the most difficult condition and with a huge quantity of sand in the water. Impeller’s wear ring in rubber. Normalized coupling following NEMA standard for 8”. Counterclockwise rotation seen from the top side.

Most popular related searches
  • Flow up to 3500 l/min (210 m³/h )
  • Head up to 454 meters
  • 2850 r.p.m.
  • MOTOR power up to 130 kw
  • Maxixum starting per hour: 7
  • Water temperature: from 0°C to 30°C
  • Maximum quantity of sand: 40 g/m³
  • G25 Cast Iron impellers & diffusers
  • Built for a continuos duty
  • Maximum diameter: 190 mm
  • Counterclockwise rotation seen from the top side
  • 5”G threaded outlet
  • Normalized coupling following NEMA standard for 6” and 8”
  • Suction from deep well of no-corrosive water
  • Industrial and domestic use
  • Lifting stations
  • Irrigation systems
  • Aqueducts
  • Pressurization and fire-fighting systems
