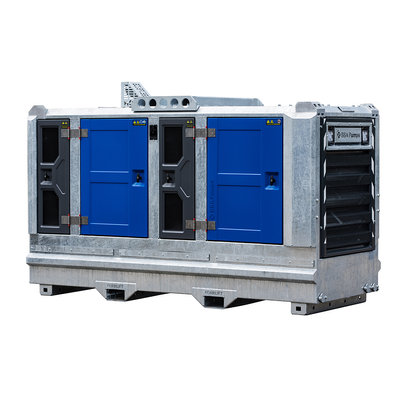

BBA Pumps - Model BA180E D328 Multi-Use -8-Inch Mobile Diesel Driven Pump

• Type: BA180E D328
• Max. flow: 780 m3/hour (3430US GPM)
• Max. pressure: 50 mwc (165 ft.)
• Connections: DN 200 (8”)
• Solids handling: 80 mm
• Impeller type: Semi-open impeller
• Priming system: BBA MP50
• Engine: Perkins 1104D-44TA
• Emission standard: Stage IIIA
• Canopy: M10-25
• Weight (net): 2150 kg (4730 lb)
• Sound level: Approx. 67 dB(A) at 10m

BA auto prime pump

The BA range of pumps has been designed with a clear focus on reliability, efficiency and durability. Featuring a 100% mechanical priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. The heavy build style of both pump and canopy make the BA range perfect for use in the strenuous contractor market.

World-class performance

The BA range is built to be deployed on the most demanding dewatering and sewage bypassing applications. Using high efficiency pumps and state-of-the-art diesel engines, the pumps offer maximum performance at minimal cost, fully in-sync with the company philosophy of “Lowest cost of ownership”.

Sustainability

• High efficiency pumps minimising fuel consumption
• Emissions in accordance with the regulations in all continents except Europe and North America
• Corrosion free hot dip galvanised canopy
• Corrosion free composite door panels and powder coated plating
• 100% Oil-spill free priming system
• Fully bunded unit eliminating fuel/oil spills at all times

Complete package designed & built by BBA Pumps

• Complete in-house design & production
• Over 60 years of experience in the market
• Complete testing facility in-house
• Contemporary & functional design
• Durable & eco-friendly materials
• Custom builds available

After sales service & product support

• Single supplier for parts, spares & accessories
• Dedicated customer help-desk (24h service)
• Dedicated service department in-house
• Global parts distribution network
• Optional global on-site servicing available
• Extensive training options available (technical & commercial), on-site or in-house

BBA auto prime pump

• Pump type: BA180E D328
• Max. flow: 780 m3/hour (3430 US GPM)
• Max. head: 50 mwc (165 feet)
• Impeller type: Semi-open impeller
• Solids handling: 80 mm (3.15 inch)
• Pump casing: Cast iron GG20
• Impeller: Chrome Moly 42CrM04
• Wear plate: Chrome Moly 42CrM04
• Pump shaft. C45
• Shaft seal: Mechanical seal
• Seal faces: Tung/Sic
• Seal rubbers: Viton

BBA priming system

• Pump type: BBA MP50 Diaphragm pump
• Air handling capacity: 50 m3/h (30 CFM)
• Max. vacuum: 8.5 m (29 inHg)
• Drive: Toothed belt (continuous drive)
• Float box: Aluminium
• Non return valve: Cast iron GG25
• Check valve disc: Buna-N

Engine

• Engine brand: Perkins
• Engine type: 1104D-44TA
• Gross power: 80 kW (108 Hp)
• Max. engine speed: 1800-1900 RPM
• Fuel consumption: 230 g/kWh
• Displacement: 4.4 l
• Number of cylinders: 4
• Cooling system: Water cooled
• Emission level: Stage IIIA

BBA dashboard LC20

• Auto start/stop system
• Two float switches included (10m cable)
• Switch Manual-0-Auto
• Tachometer
• Hour counter
• Warning lights “oil and engine temperature”
• Warning light “auto stand-by”

Fuel system

• Composite fuel tank 300 L. net (80 US Gallon)
• Fuel tank cap Ø 100 mm
• Mechanical fuel injection system

Electrical system & safety features

• Premium quality battery
• Nominal voltage 12 Volt
• Engine safety features like overload shutdown

CANOPY M10-25

BBA sound attenuating canopy

• Canopy type: M10-25
• Dimensions L x W x H: 2500 x 1050 x 1680 mm
• Dimensions L x W x H: 100 x 41.3 x 66.1 inch
• Basic frame: Hot dip galvanised
• Doors: 4 easy-access doors (lockable)
• Front- and door panels: Composite ABS/ASA
• Fuel tank: PE net 300 ltr (80 US Gallon)
• Fuel tank autonomy: 15 hours (at 1800 rpm BEP)
• Fuel tank cap: 100 mm (4 inch)
• Module (10-23 kit): Oil drain pump – battery isolator – external fuel tank connector
• Forklift pockets. Fitted with 2 forklift pockets
• Lifting point: Fitted with 2 lifting points
• Connections: Please consult “auxiliary items” in overleaf
• Exhaust system: Fully integrated in canopy
• Additional: Fitted with oil-water separator
• Documentation box: BBA user manual and warranty book
