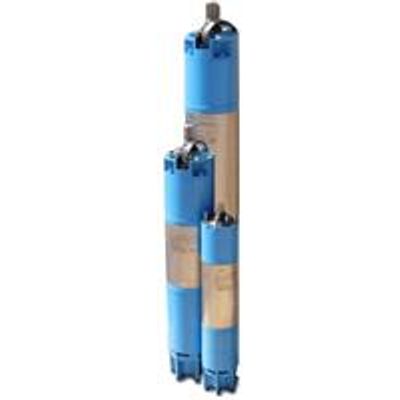

Soggia - Model 8MA -8 Inch Water Filled Rewindable Motors
FromSoggia Srl
Series of submersible motors 8 "rewindable water bath, asynchronous 2 poles, with squirrel-cage rotor. Winding wire wet PVC, easily retractable. Durable MOTORs oversized to withstand heavy loads and long life. The radial and axial Bearing are Mitchell and lubricated by water inside the motor; this allows a long period of operation without any maintenance. Mechanical Seal mounted on driving shaft which allows a particular strength in the presence of sand.
Most popular related searches
water filled rewindable motor
borehole pump
borehole pumping
submersible motor
8” submersible motor
borehole motor
bathing water
borehole
bearing lubrication
- Winding: PE2+PA
- Outer jacket and cover bottom of stainless steel
- Upper and lower Motor Bracket in Cast iron G25
- Upper and lower radial bearings in Graphite
- Bearing axial in Graphite - AISI 303
- Mech. Seal in SiC - NBR - AISI304
- Atoxic Filling liquid : water + glycol
- Sand protectios in NBR - AISI304
- Motor insulation class Y / B - Protection IP 68
- Shaft extension and coupling dimensions according NEMA standards
- Easily removable and retractable
- Available in star delta starting Y / Δ
- Voltage tolerance: ± 10%
- Water temperature: 30°C
- Maximum starts per hour: 7
- Axial charge: 45000N
- Maximum immersion depth: 100 m
- Minimum flow rate speed: 0,50 m/s
- Working position: vertical
