Zhuhai Wangyang - Model WY-TW-80 -80 Tons/Day Pure Water Desalination System
Container type pure water desalination system is to desalinate raw water into pure water to meet customer water requirements. The raw water passes through the pretreatment system of multi-media filter and activated carbon filter to remove particulate impurities, colloids and residual chlorine in the water, and then passes through the reverse osmosis system to remove bacteria, viruses and other microorganisms in the water and most of the heavy metal plasma that is harmful to the human body. Reverse osmosis produces water through the UV sterilizer post-treatment system.

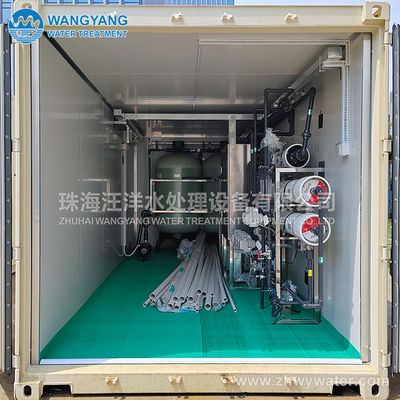

Equipment integrated container design. The system is commissioned before delivery, and only needs to connect external pipes and power supplies to the site to accelerate field deployment. Fully automated operation, simple operation and maintenance.
- Model: WY-TW-80
- Water yield: 80 Tons/Day(3.34 Tons/Hour)
- RO product water quality: TDS<10mg/L
- Desalination rate: >99.5%
- Raw water quality: TDS<100mg/L
- Recovery rate: 70%(Depending on temperature and inlet water quality)
- Operation pressure: 1~3Mpa
- RO Membrane: 4 pcs
- Pressure vessel: 2 pcs
- Power: 4.68KW
- Voltage: AC380V / 50Hz / Three phase
- Protection grade: IP54
- Dimensions: 20feet container
- Net weight: 4000Kg
* 1. Equipment can be customized according to customer requirements.
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with an automatic control multi-way valve, and the multi-media filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
- Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand
- Pressure Vessel: FRP material
- Feed Pump: NB brand
- High Pressure Pump: NB brand
- Conductivity Meter: Createc
- Electric Element: Schneider brand or equivalent
- UV Sterilizer: 10 Tons/Hour
- PLC
- Touch Screen
