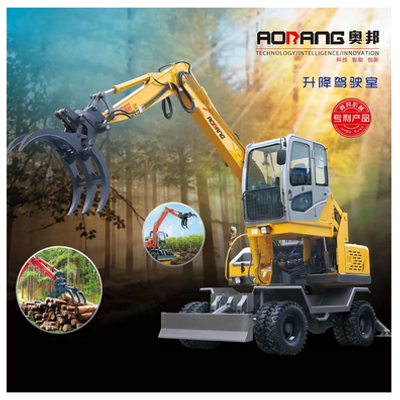

Topper - Model AB100Z -8.6 Ton Wheeled Grab Excavators with Lifting Cab
AB100Z Wheeled Excavators with Grab and Lifting Cab-a versatile machinery. Model No.: AB100Z, with an operating weight of 8600 kg and a 65 kW engine, delivers exceptional performance. Navigate with ease using its 1980 mm tail swing radius. The Grabber Max Open reaches up to 1250 mm, enabling efficient load handling. Capable of grabbing 500 to 700 kg at its Max Radius Grabbing Weight, it ensures productivity. Travel at a maximum speed of 25 km/h, optimizing efficiency on the site. Reach impressive dumping heights of 4650 to 5100 mm and lift the cab up to 800 mm, offering enhanced visibility and flexibility. Conquer challenging terrains with a gradeability of 30 °/58%. The AB100Z is your reliable partner for various construction tasks, providing power, precision, and versatility.
- Model No.: AB100Z
- Products: Wheeled Excavators with Grab and Lifting Cab
- Operating Weight: 8600 kg, 8.6 Tons
- Engine power: 65 kw
- Tail Swing Radius: 1980 mm
- Grabber Max Open: 1250 mm
- Max Radius Grabing Weight: 500 to 700 kg
- Max Travel Speed: 25 km/h
- Max Traction Force: 58.5 kw
- Max Dumping Height: 4650 to 5100 mm
- Max Lifting Height of Cab: 800 mm
- Gradeability: 30 °/58%
Range of operation
- Boom length : 3670mm
- Arm length : 1850mm~2650mm
- Max radius of capture : 7000mm~7800mm
- Max. Opening Width of Grab : 1250mm
- Min. Opening Width of Grab : 80mm
- Max. RADIUS Grabing Weight : 500~700kg
- Grapple rotation angle : 360°
- Maximum Dumoing Height : 4650~5100mm
- Back-end radius of gyration : 1980mm
- Max Lifting Height of Cab : 800mm
- Max Extended Distance of Arm : 800mm
Dimensions
- (Length*width*height) Transport Dimensions : 6450*2230*3050mm
- Wheel base : 2430mm
- Track(Front/rear) : 1850mm/1750mm
- Ground clearance of counterweight : 1060mm
- Min ground clearance : 200mm
Tech performance and specification
- Angle of rotation : 360°
- Machine weight : 8600kg
- Engine model : YUNNEI 4102
- Rated Power : 65KW
- Rated Speed : 2400r/min
- Hydraulic system working pressure : 21Mpa
- Hydraulic system flow : 150L/min
- Variable piston pump : 71ml/r
- Max Traction Force : 58.5KN
- Walking speed : 25km/h
- Grade Climbing ability : 58%/30°
- Tyre model : 8.25-16
- Swing Overload Pressure : 20Mpa
- Full circle swinging time : 5.5s
- Fuel Quantity : ≥4L/h
- Capacity Of The Fuel Tank : 110L
- Hydraulic Tank Capacity : 110L
