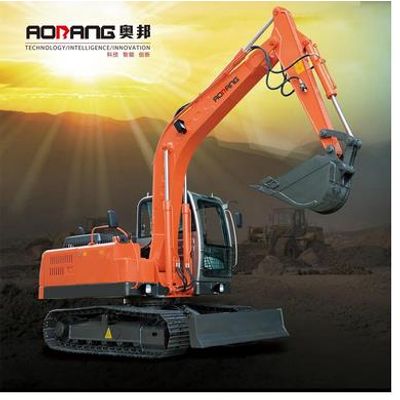

Topper - Model AB100L -8.8 Ton Crawler Excavators
Discover the AB100L Crawler Excavators-the ultimate choice for power and efficiency. Model No.: AB100L, with an operating weight of 8800 kg and a robust 62.5 kW engine, ensures outstanding performance. With a 2000 mm tail swing radius, offering excellent maneuverability. The 0.35 m³ bucket capacity allows for efficient material handling. Adapt to different terrains with a maximum travel speed of 4.8 km/h in high mode and 2.8 km/h in low mode. Experience a generous digging reach of 7000 mm and a digging depth of 4320 mm, making it perfect for various excavation tasks. Conquer challenging conditions with a remarkable 58.5 KN traction force and a gradeability of 35°/70%. The AB100L excels in delivering superior construction results.
- Model No.: AB100L
- Products: Crawler Excavators
- Operating Weight: 8800 kg, 8.8 Tons
- Engine Power: 62.5 kw
- Tail Swing Radius: 2000 mm
- Bucket Capacity: 0.35 m³
- Max Travel Speed(high/low): 4.8/2.8 km/h
- Max Digging Reach: 7000 mm, 7.00 Meters.
- Max Digging Depth: 4320 mm, 4.32 Meters.
- Max Traction Force: 58.5 KN
- Gradeability: 35 °/70%
Range of operation
- Boom length: 3830mm
- Arm length: 1900mm
- Maximum Digging Reach: 7000mm
- Maximum Digging Depth: 4320mm
- Maximum Digging Force: 60KN
- Maximum Digging Height: 6200mm
- Maximum Dumping Height: 4150mm
- Back-end radius of gyration: 2000mm
Dimensions
- (Length*width*height) Transport Dimensions: 6500*2230*2660mm
- Wheel base: 2320mm
- Track Gauge: 1750mm
- Width Of Crawler: 450mm
- Width Of Platform : 2230mm
- Ground clearance of counterweight: 820mm
- Min ground clearance: 360mm
Tech performance and specification
- Angle of rotation: 360°
- Machine weight: 8800kg
- Engine model: YUCHAI 4FA85
- Rated Power: 62.5KW
- Rated Speed: 2200r/min
- Hydraulic system working pressure: 24Mpa
- Hydraulic system flow: 158L/min
- Variable piston pump: 2*36ml/r
- Max Traction Force: 58.5KN
- Walking speed(High speed/low speed): 4.8/2.8km/h
- Grade Climbing ability: 70%/35°
- Full circle swinging time: 5.5s
- Volume Of Bucket: 0.35m³
- Swing Overload Pressure: 20Mpa
- Fuel Quantity : ≥6L/h
- Capacity Of The Fuel Tank: 130L
- Hydraulic Tank Capacity : 120L
