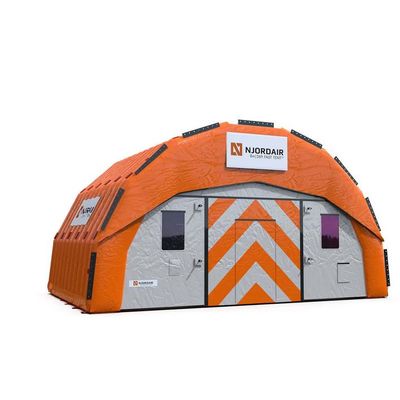

Njordair - 8m Constant Air Fast Tent Module

The 8m (26’) wide Fast Tent (constant air) work tent is a rapid deployment air building suitable for a wide range of applications in tough operational environments and is a popular choice with the construction industry. With rapidly inflatable reinforced PVC ‘air beams’, our 8m (26ft) wide ‘Fast Tent’ inflates in just 1 minute 8 seconds.

Supplied as a 5m (16’) long module. Use it as a ‘standalone’ building or join multiple modules together (end walls are removable).

Need something larger? We have Fast Tents up to 14m (46’) wide in our constant air range.

Dimensions:

• Length: 5m (16′)
• Width (outside): 8m (26′)
• Width (inside): 6.7m (22′)
• Height (outside): 4.3m (14′)
• Height (inside): 3.65m (12′)
• Packed Size: 1.5m x 1m x 1m (5′ x 3’3″ x 3’3″)
• Weight : 225Kg (496lbs)

Construction:

• Frame: n/a
• Side Walls: 620gsm PVC (Flame Retardant)
• End Walls: 2 x removable – 620gsm PVC (Flame Retardant)
• Roof: 620gsm PVC (Flame Retardant) with lightweight PU option.
• Module Connection: 9 x dutch lacing sections + rain cover

Standard Features:

• Windows: 4 x clear PVC windows – 60cm x 90cm (23″ x 35″)
• Access: 2 x pedestrian door – 1m x 2m (3’2″ x 6’5″)
• 2 x machinery door – 2.5m x 2.5m (8’2″ x 8’2″)
• Fans: 1.5hp (one for each tent module)
• Fill Points: 2 x 0.75m (2’6″) filler pipes (1 each side)
• Deflation Zips: 2 x 1m (3’3″) quick deflate zips
• Internal Ties: 40 x webbing loops
• Document Pouch: 1 x 350mmx 350mm (14″ x 14″) clear external pouch in end wall
• Duct Holes: 2 x 300mm (12″) ducting holes with velcro flap

Anchors (Each side):

• High Level: 4 x multi directional webbing – 150Kg (330 lbs) capacity
• Mid Level: 4 x multi directional webbing – 150Kg (330 lbs) capacity
• Ground Level: 6 x heavy duty metal ring – 150Kg (330lbs) capacity (red/green colour coded)
• Anchors (Each end):
• High Level: 10 x multi directional webbing – 150Kg (330lbs) capacity
• Ground Level: 4 x multi directional webbing – 150Kg (330lbs) capacity

Standard Accessories:

• Transport Bag: Heavy duty PVC transport bag
• Repair Kit: 640gsm PVC material, glue, needle & thread
• Stakes: 300mm + 750mm (12″ + 29″) long reinforced steel
• Ties: 18mm (3/4″) polypropylene rope
•  Colours (Built to order): Choice of 18 colours

 Branding / Logos:

• Side Walls: 4 x removeable digitally printed PVC banners – 174cm L x 87cm H (5’8″ x 2’10”)
• End Walls: 2 x removeable digitally printed PVC banners – 174cm long x 87cm H (5’8″ x 2’10”)
•  Note:: Specification and dimensions may be subject to change without notice.
