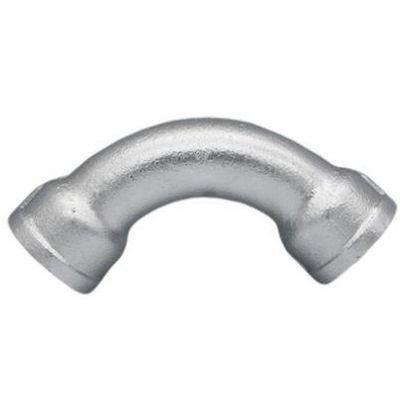

Jianzhi - Model Fig.2 -90 Degree Female Bend Elbow
Bend refers to the pipe fittings that change the direction of the pipeline in the pipeline system. Elbow by angle, there are 45 °, 90 °, 180 ° three most commonly used, this product is 90 degrees of the female bend, mainly used in plumbing system installation. Bend female in addition to corrosion resistance, but also has excellent mechanical resistance to compression, traction and bending stress.
Most popular related searches
- Size: 1/8``-6``(DN6-DN150)
- Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
- Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
- Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
- Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
- Maximum Temperature: 200°C (392°F)
- Tensile Strength: 350MPA
- Hardness: HB150 (Brinell)
- Elongation Rate: 10%
- Suitable Applications: Water, Oil, Gas, Petro-Chemical
- Material: Malleable Iron
