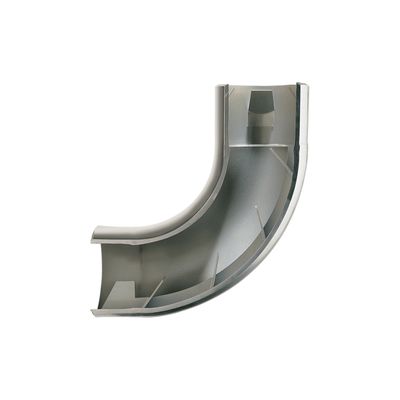

Vortab - Model VEL -90° Elbow Flow Conditioner
The VORTAB VEL 90° Elbow flow conditioner provides a low pressure loss solution to flow profile irregularities caused by elbows and other disruptions that commonly occur upstream of that elbow in piping and duct runs. Only 3 pipe diameters of straight run between the Vorel and flow meter is required. The VEL configuration offers a complete, simple elbow replacement for new and existing piping systems.
Most popular related searches
flow conditioner
flow profiler
flow profiling
blower compressor
flow meter
pipe system
velocity profiler
velocity profile
velocity profiling
flow calibration
- Increases pump efficiency and longevity
- Piping with inadequate straight runs or upstream disturbances
- Temperature and pressure stratification
- Process conditioning for blowers, compressors, burners and other critical process equipment
- Reduces pump noise and maintenance costs
- Flow conditioning for calibration and test benches
- Processes that require repeatable, symmetric and swirl-free velocity flow profiles
Process Media:
- Gases, liquids and slurries
Materials of Construction:
- 316L stainless steel
- Carbon steel
- Hastelloy C
- Other materials of construction available
Pipe Size:
- 2 inch [51 mm]
- 3 inch [76 mm]
- 4 inch [102 mm]
- 6 inch [152 mm]
- 8 inch [203 mm]
- 10 inch [254 mm]
- 12 inch [305 mm]
- Other pipe sizes available
Pipe Schedule:
- Schedule 40
- Schedule 80
- Other pipe schedules available
Pipe Connection:
- Weld preparation
- Flanged, up to 600 lb rating
- Male NPT, up to 4 inch pipe size
For any other required options or special features not listed above, please contact FCI.
