Zhuhai Wangyang - Model WY-BW-96 -96 Cubic Meters Brackish Water Desalination System (with Softening Bed)

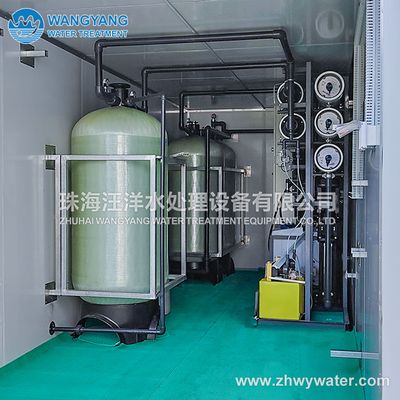

The brackish water desalination system is suitable for high salinity areas and seawater inversion areas, and is designed by an internationally advanced reverse osmosis technology. The equipment is integrated in a standard container, which is not only convenient for transportation and export, but also for hoisting and placing on site and quickly put into use, and it is also very convenient in operation and management. The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in brackish water, and desalinate brackish water into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022).
- Model: WY-BW-96
- Water yield: 4m3/h
- Raw water quality: <4000PPM
- Desalination rate: >98.5%
- RO product water quality: <500mg/L
- Recovery rate: 65% (Depending on temperature and inlet water quality)
- Operation pressure: 1~3.5Mpa
- RO Membrane: 6 pcs
- Pressure vessel: 8040, 3 pcs
- Power: 7KW
- Voltage: 380V / 50Hz / Three phase
- Protection grade: IP54
- Dimensions: 20 feet container
- Equipped with insulation, air conditioning
- Net weight: 5,000Kg
* 1. Equipment can be customized according to customer requirements.
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with a control multi-way valve, and the multi-media filter and the activated carbon are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
- Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand
- Pressure vessel: 8040, FRP material
- Feed Pump: SUS316, GRUNDFOS
- High Pressure Pump: SUS316, GRUNDFOS
- Conductivity Meter: Createc
- Electric Element: Schneider brand or equivalent
