A UNO TEC - Motion System for Assembly Technology
FromA UNO TEC SRL

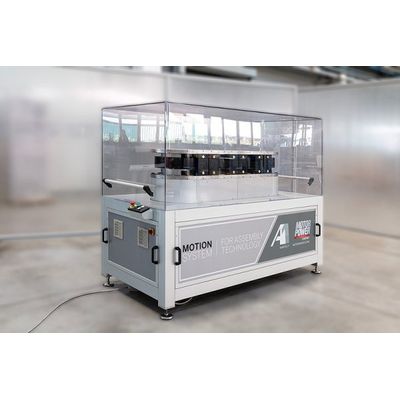

Free Pallet Motion System is A UNO TEC own design modular equipment characterized by an independent, flexible and settable movement, based on ILSM - Independent Linear Sinchronous Motors - designed and manufactured by Motor Power Company. A UNO TEC realizes and installs this revolutionary technology on its own automatic assembly machines, providing its Customers with unprecedented benefits compared to any traditional motion system.
Most popular related searches
- Customizable length and shape
- Rise in productivity without affecting machine footprint
- Process flow optimization
- Maximization of efficiency in productivity
- Flexibility for future implementations on the machine
- Cost cutting thanks to working units reduction
- Settable acceleration and deceleration rates, ideal for fragile products
- Customizable motion speed
- Fast change of setup
- Easy-low maintenance, compared to traditional mechanical transfer
- Compatibility with every PLC
- Curve radius: 212 mm
- Module length: 500 mm
- Pallet length: 120 mm
- Payload: 15 Kg
- Maximum acceleration: 15 m/s²
- Maximum speed: 2 m/s (with max load)
- Maximum deceleration: 15 m/s²
- Accuracy < 0,1 mm
- Repeatability < 0,5 mm
- Feedback: absolute magnetic encoder
- Integrated RFID technology in any position
- STO SIL3
- 230VAC three phases
- 1,6 A + (1,2 A each linear meter)
- Free mobility for one or more carriers;
- Absolute carriers positioning;
- Arbitrary system length and carriers number;
- Individual and synchronized carriers movement;
- Integrated collision avoidance sensor;
- Acceleration/deceleration, positioning and constant force over the entire conveyor system;
- Material transport and processing on curves;
- No moving cables.
