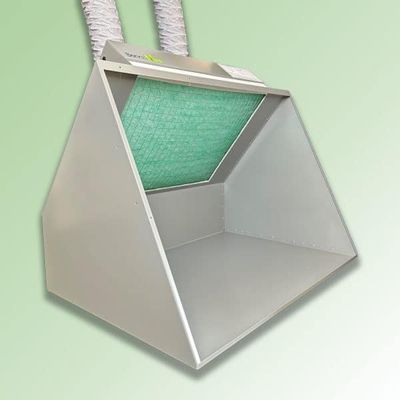

BenchVent - Model BV100H-D -A1 Ducted Spray Booth
This A1 hood mounted extraction cabinet captures, filters and expels within art, graphics, design technology areas to ensure that model makers, hobbyists, students or employees can operate in a safe working environment free of particulates.
What’s included with the BV100H-D?
- BV100H-D Filter unit with 2 x centrifugal fans
- Hood Enclosure
- 2 x 2mtrs Flexi-Ducts – 100mm diameter
- 1 x Particulate filter
- Power Lead
- Data/Warranty Booklet
What can this A1 hood mounted spray & glue booth be used for?
The BenchVent BV100H-D is ideal for applications that include filtration of aerosol adhesives (glue booth for spray mounts), aerosol lacquers and fixatives and airbrush sprays applied to artwork up to A1 size. A1 drawing boards can be placed into the hoods at an angle for efficient overspray capture. The workstation hood also accommodates prototypes, models, ceramic parts, PCB’s etc, placed onto the hood base to be sprayed, soldered, cleaned, glued, moulded, sanded etc.
These cabinets are designed for studio / classroom / workshop cleanliness and for immediate operator protection whereby ‘large’ particulates (greater than 5 microns) are filtered out and ‘fine’ particulates (less than 5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the flexi-duct(s).
- For artwork applications, standard A1 drawing boards can be placed within the hood enclosure. The boards fit at an angle for efficient overspray capture.
- 3D items, models, printed circuit boards etc. may be placed onto the hood base for spraying, cleaning, sanding, gluing etc. The Flexi-ducts can be fixed to a standard domestic vent(s) or simply placed through a partially open window to facilitate portability or convenience.
- With the aid of a “Y” piece the 2 ducts can be placed through one hole in the wall.
The BV100H-D hood mounted extraction unit, like all BenchVent filtration and extraction systems carries a lifetime guarantee. The unit has been designed to make sure it’s quiet in operation and can be assembled in seconds. Simply place onto a desk, bench or trolley and then plug in and switch on to start extracting particulates from applications like glue overspray and aerosol adhesives.
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via our flexi-duct system, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.
Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
Dimensions
960x660x620 (wxhxd) [internal]
960x740x720 (wxhxd) [overall]
Description
Steel construction finished in grey – fan/filter unit mounted onto hood enclosure – particulate filter – 2 x centrifugal blowers – external rotor motor type, brushless, UL, VDE and CSA approved -sealed electrical wiring and switch, downstream of filter. 2 Flexi-ducts each 2 metres x 100mm dia.
Air Volume at Free Air
710m3/hr
Ave. Air Velocity at Filter Face
0.60 m/sec
Ave. Air Velocity at Hood Face
0.27 m/sec
Fan Motor Spec
230V 50Hz 210W, 115V 60Hz 220W
Filters
Particulate Filter: IFA2
Noise Level LAeq dB(A)
60 db(A)
