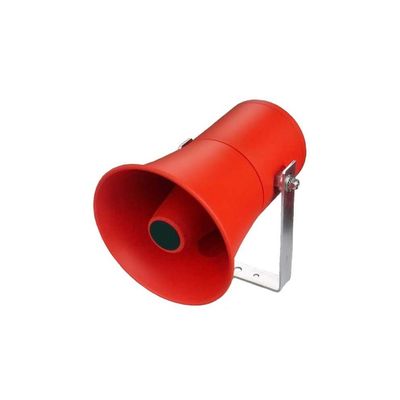

A2S - Model Serie SD125 -Ex-proof Sounder SD125 in Stainless Steel
Serie SD125 is a product certified zone 1, 21 for the Hazardous areas. It is dedicated for the Oil & Gas, chemical, petrochemical, pharmaceutical, marine and all Offshore applications industries. It was developed for corrosive environments and explosive areas. It is possible to select 1 tone from the 59 pre-recorded, including the main usual alarm tones. Standard possibility of controlling by external commands (dry contacts) 3 sounds previously selected from the 59 proposed and the pause of the sound signal. Upon request, specific customer tones can be pre-recorded at the factory. The assembly is molded and machined in AISI 316L stainless steel covered with a paint resistant to UV. Optionally it is possible to integrate the activation of the siren by a telephone line. A full range of accessories allows you to personalize the products.
- ATEX and IECEx certified for zone 1, 2, 21, 22
- IP 66/67
- Up to 115dB
- 59 sounds available (customizable)
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
- GRP version also available
Customs code : 85311095
Country of origin : FR
Weight : 6,2kg
Old reference : A217A000
- Implementation
- Hazardous area
- Certification
- ATEX
Iecex - Suitable For
- Area 1/21
Area 2/22 - Protection Against Gas Explosion
- Ex d IIC T4~T6 Gb
- Protection Against Dust Explosion
- Ex tb IIIC T135°C~T85°C, Ex II GD
- Material
- Stainless steel AISI 316L
- Enclosure Colour
- Red
- Ambiant Temperature
- -50°C to +70°C
- Power Supply
- 24-48 Vdc
100-240 Vac - Operating Intensity (Adjustable)
- Between 250mA and 1500mA
- Power Output
- 115 db
- Sounds
- 59
- Power Consumption (W)
- 5-20W
- Cable Entries
- 2x M20 standard – M25, 1/2′′NPT, 3/4′NPT specification
