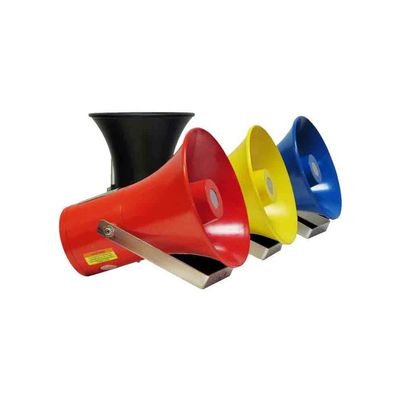

A2S - Model SIRÈNE SÉRIE SD150 – 115dB(A) -Warning Signals Audible Signalling
Serie SD150 is a sounder certified ATEX/IECEx for zones 1, 2 (gas) and 21, 22 (dust). It is dedicated for the Oil & Gas, chemical, petrochemical, pharmaceutical, marine and all Offshore applications industries. It was developed for corrosive environments and explosive areas. It is possible to select 1 tone from the 59 pre-recorded, including the main usual alarm tones. Standard possibility of controlling by external commands (dry contacts) 3 sounds previously selected from the 59 proposed and the pause of the sound signal. Upon request, specific customer tones can be pre-recorded at the factory. The assembly is molded in polyester reinforced with glass fiber (GRP), tinted in the mass and protected by a paint highly resistant to UV. Optionally, it is possible to integrate the activation of the siren by a telephone line. A complete range of accessories allows you to customize the products.
Sounder in GRP for zone 1, 21
- ATEX and IECEx certified for zone 1, 2, 21, 22
- IP 66/67
- Up to 115dB
- 59 sounds available (customizable)
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
- Stainless steel version also available
Customs code : 85311095
Country of origin : FR
Weight : 5,4kg
Old reference : A217A010
- Implementation
- Hazardous area
- Certification
- ATEX
Iecex - Suitable For
- Area 1/21
Area 2/22 - Protection Mode
- Ex d
- Marking
- Ex d IIC T4~T6 Gb, Ex tb IIIC T135°C~T85°C, Ex II GD
- Degree Of Protection
- IP66
- Material
- Reinforced polyester (GRP)
- Enclosure Colour
- Red, blue, black (more colours on demand).
- Ambiant Temperature
- -50°C to +70°C
- Humidity
- up to 95% RH
- Power Supply
- 24-48 Vdc
100-240 Vac - Operating Intensity (Adjustable)
- Between 250mA and 1500mA
- Sounds
- 59
- Power Consumption (W)
- 5-20W
- Cable Entries
- 2x M20 standard – M25, 1/2′′NPT, 3/4′NPT specification
