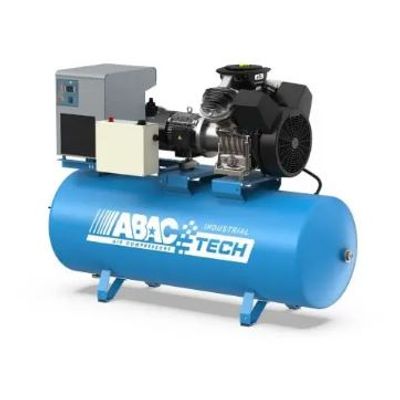

ABAC - Model ATL 10 500D -Piston Compressor
The ATL 10 500D Piston Compressor from Abac Tech Industrial is designed for various industrial applications, offering flexibility through its Full Featured configuration. This compressor operates at a maximum pressure of 10 bar, ensuring efficient performance in demanding environments. It features a substantial vessel size of 500 liters and delivers a Free Air Delivery (FAD) rate of 942 liters per minute at maximum pressure, which makes it suitable for high-demand tasks. The motor is rated at 10 horsepower, providing robust power output to sustain prolonged operations. The design and specifications make the ATL 10 500D ideal for tasks that require consistent and reliable compressed air solutions. Note that product images may not precisely represent the actual item.Most popular related searches
- Max Pressure (bar) : 10
- Vessel size (l) : 500
- FAD @Max pressure (l/min) : 942
- Motor (hp) : 10
Abac Tech Industrial can be used in wide range of applications thanks to its Full Featured configuration.
Specification: Value
Weight: 282000 g
Width: 748 cm
Height: 1390 cm
Length: 1990 cm
Specification: Value
Max Pressure (bar): 10 Bar
Max Pressure (psi): 145
Pump speed: 1500 Rpm
Vessel size (lt): 500 Liter
Vessel size (gal): 132 Gal
Configuration: Full Feature
Air Displacement (l/min): 1560 l/min
FAD @Max pressure (l/min): 942 l/min
FAD @Max pressure (cfm): 33.3 Cfm
Lubrication: Oil Lubricated
Oil capacity: 1.8 Liter
Pump Element: LE10
Motor (hp): 10 Hp
Motor (kw): 7.5 kW
Cylinders: 2
Supply voltage: 400 V
Frequency: 50 Hz
Number of phases: 3
Noise Level (LPA): 81 dB(A)
Noise Level (LWA): 101 dB(A)
Construction: Industrial
Duty Cycle: S1 100%
