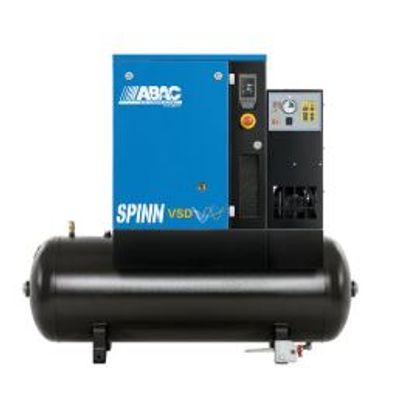

ABAC - Model SPINN7,5E I 10 400/50 200 SA -Compressed Air System
The SPINN7,5E I 10 400/50 200 SA is an industrial compressed air system designed to deliver reliable performance for various industrial applications. This model operates at a maximum working pressure of 10 bar and includes a 200-liter vessel, making it suitable for continuous and demanding operations. With a motor power of 7.5 kW, the system achieves a Free Air Delivery (FAD) capacity that ranges from a minimum of 594 liters per minute to a maximum of 966 liters per minute, ensuring flexibility and efficiency in air supply. This full-feature configuration is engineered to meet stringent noise level standards, providing a quieter work environment.Most popular related searches
- Max Working Pressure (bar) : 10
- Vessel size (lt) : 200
- Configuration : Full Feature
- FAD Capacity Min (l/min) : 594
- FAD Capacity Max (l/min) : 966
- Motor (kw) : 7.5
- Noise Level :
Specification: Value
Weight: 227000 g
Specification: Value
EAN Code: n.a.
Min Working Pressure (bar): 4 Bar
Min Working Pressure (psi): 58 PSI
Max Working Pressure (psi): 145 PSI
Max Working Pressure (bar): 10 Bar
Vessel size (lt): 200 Liter
Vessel size (gal): 53 Gal
Configuration: Full Feature
FAD Capacity Min (cfm): 20.9 Cfm
FAD Capacity Min (l/min): 594 l/min
FAD Capacity Max (l/min): 966 l/min
FAD Capacity Max (cfm): 34.1 Cfm
Pump element: C43
Noise level: 61 dB(A)
Motor (hp): 10 Hp
Motor (kw): 7.5 kW
Supply voltage: 400 V
Frequency: 50 Hz
Number of phases: 3
Air connector: 1/2
Oil capacity: 3.2 Liter
Length: 1430 mm
Height: 1285 mm
