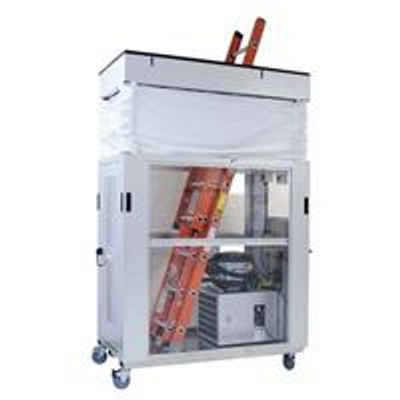

Abatement Technologies AIRE GUARDIAN - Model AG8000 -Mobile Dust Containment Cart
The Ultimate ICRA-Compliant Solution for Containing Airborne Particles Released During Ceiling Cavity Work. Protect Your Patients. Protect Your Employees. Protect Your Facility.
Does the proximity of your hospital construction, renovation or maintenance project pose the potential risk of exposing sensitive patients or hospital staff to health threatening airborne dust particles? The AIRE GUARDIAN AG8000 Mobile Construction Containment Enclosure* from Abatement Technologies provides the perfect particle control solution for these projects. Hospital contractors are reporting substantial productivity increases and rapid ROI on their investment in the AIRE GUARDIAN dust containment module.
* U.S. Patent No. 9,574,399 / Canadian Patent No. 2,895,016
Responsible hospital maintenance staff and facility contractors choose dust containment procedures that comply with Joint Commission audited and enforced ICRA Construction Guidelines. Infection control risks can be especially high for healthcare construction and maintenance activities that require frequent or repeated access into dust laden ceiling cavities.
Applicable uses for the AG8000 Mobile Dust Containment Cart include:
- Ceiling tile or grid replacement
- Computer cable installation
- Electrical equipment
- Electrical wiring installation
- Fire suppression systems
- HVAC equipment & ductwork
- Air filter change outs
- Pneumatic systems
- Hospital automation systems
- Facility automation networks
- Lighting equipment
- Plumbing systems
When used with a PAS750 Portable Air Scrubber (included in AG8000PAS kit), your workspace becomes a fortress under negative pressure surpassing hospital infection control department requirements and NFPA life safety codes for patient protection. Contractors and facility maintenance staff working on building construction and renovation projects depend on its rugged and durable design, ease of use and numerous built-in safety and performance features.
- Unique upper header design gives workers unmatched height access above ceiling tiles while keeping them safe and OSHA compliant
- Height adjustment mechanism affords single-handed header extension and retraction to any ceiling height up to 10 ft
- Height adjusts easily using either the included hand-crank or a power drill (drill not included)
- 900 lb load rating and secure locking casters
- Includes 16 ft, 3-Section Fiberglass Extension Ladder
- Dimensions: 62”L x 32”W x 77.5”H (157cm x 81cm x 197 cm)
- Maximum Accessible Ceiling Height: 122” (3m)
- Weight: 285 lbs (129kg)
- Door Opening: 54.5”H x 22”W (138cm x 56cm)
- Power: Use a grounded extension cord (not provided) from a 120VAC, 60Hz, single phase source
- Max Load: Cart base 900 lbs (408kg); Ladder 300 lbs (136kg)
- Sleeve & Top Cover Material: Polyester (meets CPAI 84 Flame Retardant Standard)
- Ladder: 3 section fiberglass ladder, extends to 15’ H ( 4.47m) and compacts to 6’H ( 1.82m)

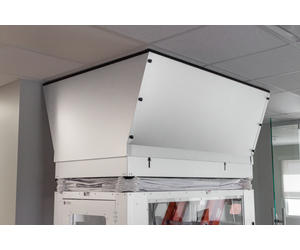

The AG8000-EXT24 is a great optional accessory to install on the AG8000 Mobile Containment Cart. Installing the Top Extension increases the overall height reach from 10’ to over 12’ when the cart is fully extended and provides a larger ceiling surface workspace within the confines of the Top Extension by an additional 5 sq ft. When not in use the Top Extension can be sealed at the top with a zippered, soft canvas, hatch type door. Toolless assembly required.
The AG8000-EXT24 is not included with the AG8000 and sold separately.

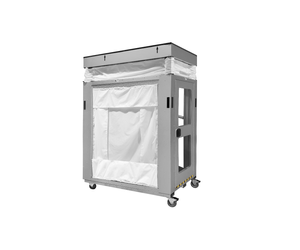

Side Access Panel with Zipper Opening in an anodized frame. Retrofittable to any existing AG8000. Usable area 46" W x 55" T.
The AG8000-SA Side Access Panel is an ideal optional accessory that will enhance the functionality of your AIRE GUARDIAN® AG8000 Mobile Containment Cart. Retrofit one of the hard sides of the cart with this easy-to-clean, fabric apron, set into an anodized aluminum frame. With this new accessory, you can position the cart flush to the wall and create an airtight seal to tackle wall access projects in sensitive environments.
The AG8000-SA is not included with the AG8000 and sold separately.
