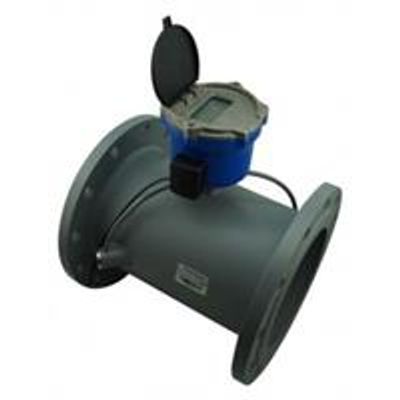

Abest TechBattery Powered Ultrasonic Water Meter

SHARE

Applied with Euro standard of EN1413, Ultrasonic water meter is a super low consumption water meter with high-accuracy industry electronic parts equipped. It has many advantages such as: high accuracy, good reliability, no moving parts, no pressure drop, Low maintenance, etc. It is a excellent substitution of other water meters. With high quality parts and advanced technology, the ultrasonic flow meter/water meter have reached a very excellent performance. Unlike mechanical water meters,the ultrasonic water meter has an outstanding long-term stability. There is no moving parts in its sensor, so its performance doesn’t degrade over time,its overall system accuracy doesn’t also degrade over time.

Most popular related searches
  • Measuring accuracy:
  • ±2% or 3% of reading value
  • No pressure loss and no moving parts, designed for no maintenance
  • Measuring pipe founded by mould, no discharging
  • IP68 protection class, workable under 2 meter depth of water
  • Low start-up flow rate, the lowest flow speed measured is 0.03m/s
  • High temperature resistant and abrasion resistant transducer,  working temperature -40℃~150℃
  • RS485 port, support MODBUS,M-BUS,etc
  • Integrated type and none integrated type
  • Ultrasonic time-difference principle
  • Measuring period: 10S
  • Power supply: battery powered and DC8-36V. Battery can work for 4-5 years.Battery is 3.6V/19AH(>=2.6V for normal work)
  • Horizontal display and Down-looking display
  • Integrated inversion and separating version
  • GSM remote data reading
  • Seperating version support  clamp-on type and insertion type transducers.
  • An ideal choice for installing place without external power source
