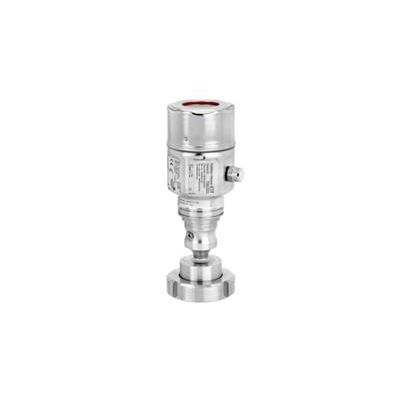

Cerabar - Model PMP55 -Absolute and Gauge Pressure
Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids. The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.
-
Large variety of different process connections and membrane materials
-
New TempC Membrane minimizes influences of ambient and process temperature fluctuations
-
Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
-
For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
-
Modular concept for easy replacement of display or electronics
-
Seamless and independent system integration (HART/PA/FF)
Single chamber aluminum or stainless steel (316L) housing.
-
Process connections: Threads, flanges or hygienic connections
-
Process temperature: -70 to +400°C (-94 to +752°F)
-
Measuring ranges: -1/0 up to +400bar (-15/0 up to +6,000psi)
-
Accuracy: ±0.15%, "Platinum" ±0.075%
-
International explosion protection certificates, SIL, hygienic approvals, marine approvals
-
Measuring principle
Absolute and gauge pressure
-
Characteristic / Application
Smart and reliable pressure transmitter, with piezoresistive measuring cell
and metal welded process isolating
diaphragm and diaphragm seal. -
Supply / Communication
4 ..20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
PROFIBUS PA
FOUNDATION Fieldbus -
Accuracy
0,15%
Platinum 0,075% -
Long term stability
< 0,1% von URL/ year
0,2% of URL/ 5 years
0,25% of URL/ 10 years -
Ambient temperature
-40°C...85°C
(-40°F...185°F) -
Process temperature
-70°C…400°C
(-94°F…752°F) -
Process pressure absolute / max. overpressure limit
600bar (9000psi)
-
Pressure measuring range
1bar...400bar
(15psi...6000psi) -
Main wetted parts
316L
AlloyC
Montel
Tantal
Rhodium -
Process connection
Diaphragm seal
Flanges (DIN, ASME, JIS)
Tri-Clamp ISO2852
Hygienic connections -
Max. measurement distance
4000m (13.123ft) H2O
-
Communication
4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus -
Certificates / Approvals
ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI
-
Safety approvals
SIL
-
Design approvals
EN 10204-3.1
NACE MR0175, MR0103
AD2000 -
Hygienic approvals
3A, EHEDG
CoC ASME-BPE -
Marine approval
GL/ ABS/ LR/ BV/ DNV
-
Options
local display
-
Application limits
Measuring cell: Metal welded
If pressurized, possibly use differential pressure meas-urement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure
