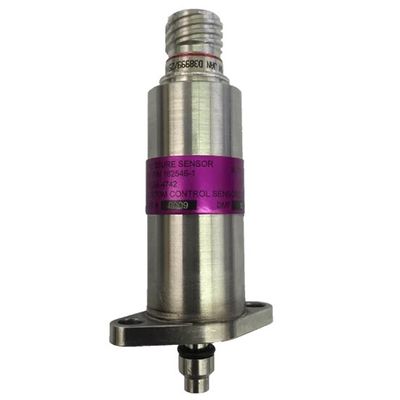

CCC - Model TRA Series -Absolute Gage Pressure Transducer
The Absolute Pressure Transducer utilizes CCS’ advanced strain Gage sensing and calibration technologies to measure pressure in aircraft systems referencing a fixed pressure adjusted to 0 PSI (0 BAR).The Absolute Pressure Transducer utilizes CCS’ advanced strain Gage sensing and calibration technologies to measure pressure in aircraft systems referencing a fixed pressure adjusted to 0 PSI (0 BAR).
Most popular related searches
pressure transducer
nitrogen generation system
nitrogen generating system
strain gauge
strain sensing
lubricant system
nitrogen generator
stainless steel flange
pressure monitoring system
pressure monitoring
Applications include:
- Hydraulic systems
- Fuel systems
- Lubrication systems
- Engines
- Landing gear
- Environmental control systems
- Nitrogen generation systems
- Bleed air
- Fluid management
Additional information
- Industry: Aerospace & Defense
- Instrumentation: Pressure Transducer
- Certification Agency Approvals: AS9100D
- Pressure Type: Absolute
- Media: Hydraulic Fluid, Lube Oil, Gas, Water, Fuel
- Pressure Range Transducers: 0 to 5800 PSIA
- Pressure Ranges Transducers: 0 to 5800 PSIA
- Maximum System Pressure: 5800
- Maximum Proof Pressure: 8700
- Port Connection Fitting Size: Threaded MS, Threaded AS, Threaded NPT, Flange Mounted
- Port Connection Material: Stainless Steel
- Custom Flange: YES, NO
- Housing Enclosure: Stainless Steel
- Electrical Environment: Hermetic, Environmental Seal (O-Ring Seal), Vented
- Electrical Connector: MIL-DTL-5015, MIL-DTL-38999, MIL-DTL-83723, Cable
- Power Supply and Output: 10-32 VDC Supply, 4-20 mA or 0.5-4.5VDC Output, 12-32 VDC Supply, 0.5-10 VDC Output
- Channel: Single, Dual
- Dielectric Strength: >500 VDC, <500 VDC
