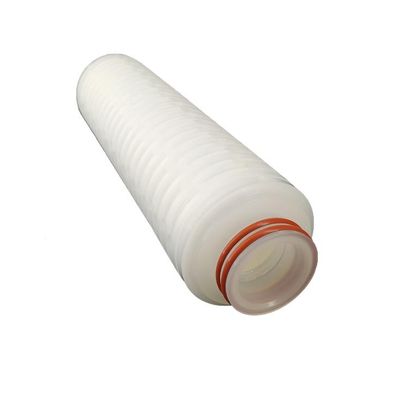

ARC - Absolute PP Cartridge Filter

ARC - Absolute PP Cartridge Filter

DAP the all polypropylene structure provide a wide range of applications and cost effective. The extended pleated polypropylene media area provide high flow rates low pressure drop and increased dirt holding capacity.

Most popular related searches

cartridge filter

polypropylene filter cartridge

Materials of Construction
Outer Cage:Polypropylene
Inner Cage:Polypropylene
Endcaps: Polypropylene
O-ring&Gasket: Silicone, EPDM
Filter Media:Polypropylene

Features
High surface area
Long service life & economy costs
All polypropylene structures
Ratings from 0.5 to 90 micron
Absolute Filter Rating
Multi-layers filter media up to five

FDA listed polypropylene components

Operation Conditions

Max Operation Temperature:80°C△P≦1.0Bar
Maximum Pressure differential:4.2bar at 25°C
Maximum Reverse pressure differential:2.1 bar at 25°C
Normal Operation Temperature: up to 55°C
