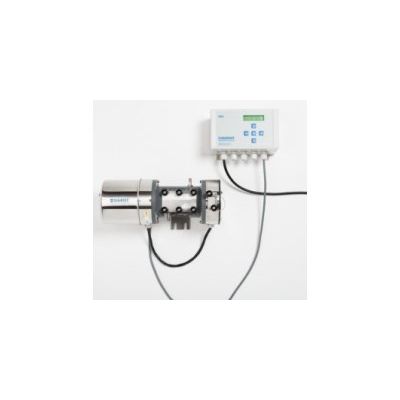

ColorPlus - Absorption Measuring Instrument
The ColorPlus is built to accommodate up to three different light sources (UV and visible range) for the measurement of color, DOC and concentrations. By use of the dichromatic measurement at separate wavelengths the turbidity can be compensated. Measurements are performed in bypass cells, the selection of materials for the cell and housing depends on the requirements. A version with flameproof encapsulation is offered for installations in areas requiring explosion protection.
Most popular related searches
absorption measurement
multi-channel controller
color measurement
absorption monitoring system
flow cell
wavelength calibration
explosion protection
UV-VIS
turbidity monitoring
Control units
- Color/absorption measurement in liquids
- Concentration measurement of substances by absorption at characteristic wavelengths
- Calibration in E/m, APHA-Hazen, EBC, ASTM, Saybolt, etc.
- Dual-beam measurement for high stability
- Effective optical compensation of flow cell window contamination
- Turbidity compensation by second wavelength
- Linearity: superior to ±0.5% transmission
- Units: E, E/m, APHA-Hazen, EBC, Saybolt, ASTM
- Wavelengths VIS: 365 nm, 390 .. 700 nm
- Wavelengths UV: 254, 313, 365, 436, 546 nm
- Measuring principle: Absorption
- Nominal range: 0 .. 3 E resp. 0 .. 60 E/m
- Resolution: 0.001 E
- Scale ranges: 8 ranges from 0 .. 0.05 E to 0 .. 3 E
- Maximum service altitude: 3,000 m above sea level
