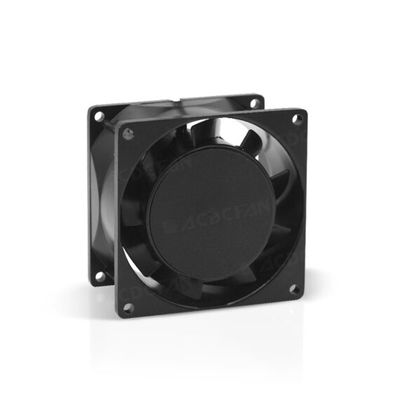

ACDC FAN - Model GW80B 80x80x38mm -AC Axial Cooling Fan
FromACDC FAN
The GW80B model is an 80x80x38mm cooling fan designed for various industrial applications. The fan housing is constructed from die-cast aluminum, available in either black or white coating, which ensures durability and corrosion resistance. Its impeller, made of metal, is engineered for optimal airflow and stability. The fan operates within a temperature range of -30 to 60 degrees Celsius and supports an operational voltage range of 110V (±10%) and 220V (±10%). Safety features include dielectric strength rated at 5mA Max at 1500V for 1 second and impedance protection. The termination options include lead wire or pin. It has a weight of 500g, an IP44 protection class, and Class F insulation. There is an option for customized high-temperature resistance up to 150°C and higher protection classes of IP55/IP67 available on request. These technical specifications make it suitable for use in demanding environments like telecommunications, medical industry, and intelligent manufacturing equipment.Most popular related searches
- Fan Frame: Die-cast Aluminum(Black or Silver coating)
- Fan Impeller: Metal
- Operation Temp: -30~80℃
- Operation Voltage Range: 110V(±10%)/220V(±10%)
- Dielectric Strenghth: 5mA Max.at 1500V for 1 min
- Safety: lmpedance Protected
- Termination: Lead Wire; Pin
- Weight: 400g
- Protection Class: IP44
- Insulation: Class A
- Option: Customized high temperature 150℃; IP55/IP67
