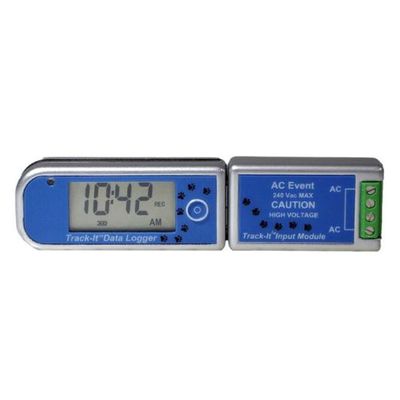

Monarch Instrument - Model Track-It (5396-0711) -AC Event Data Logger

Includes: battery and Track-It™ Software

The Track-It AC Event Data Logger is a battery-powered, compact data logger that records up to 64,000 on/off cycles. Use the Track-It™ AC Event Logger to monitor cycle patterns of pumps, blowers, and other electrical equipment powered by 120 or 240 V ac. The unit is easily configured using the included Track-It™ Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours or can be set to store a sample at every event.

The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery. The Track-It AC Event Logger can also be used to record ambient temperature along with on/off cycles. This can help diagnose heat vs. issues. The information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. The multicolor LED indicator notifies the user of alarms or general activity.

• AC Motor efficiency studies
• Predictive maintenance
• Monitor lead/lag pump cycles
• AC motor run times

• Pushbutton or program to start your record
• Up to 64,000 On/Off cycles per channel
• Monitor cycle frequency and duration
• AC ON or OFF reporting
• 120/240 VAC 50/60 Hz
• Alarm setpoints
• Small compact size
• Integral USB iInterface (no custom cable)
• Interactive software (included)
• One year battery life (battery included)
• Optional five-year battery life
• Accurate internal clock (1 minute/year)
• Multiple user-programmable displays

• General
• Record: 64,000 samples (Events)
• Record Trigger: Two independent triggers.
• Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of the week, or on the event only.
• Record Mode: Fill to end of memory or cyclic, number of samples, time duration
• Display: 4-digit LCD (non-display versions available with LED only)
• User programmable: Indication of data value, eng engunitsits, alarms, record mode, battery condition, time/date, memory
• LED: User-programmable: indication of alarms, recording, triggered
• Button: User-programmable: view display, record on/off, reset alarms, reset timer
• Alarms: 2 user-programmable alarms (High or Low)
• Communication: Direct USB connection
• Software: Track-It™—Program device, view data (historic or real time), export to Excel™; simple and advanced modes
• Battery:
• Coin Cell Option: Battery: Lithium CR2032
• Life: 12-15 months typical (varies with frequency of events)
• Hi-Energy Option: Battery: EF651625
• Life: 3 to 5 years typical (varies with frequency of events)
• Dimensions (LxHxw): 4.06” [10.32 cm] x 0.66” [1.67 cm] x 1.00” [2.54cm]

Measurement:

• Voltage Range:
• 120 to 240 V ac parallel (voltage trigged optired, optically isolated)
• Clock Accuracy: ± 1 minute/year
• Temperature Range:
• -20 °C to +85 °C /-4 °F to 185 °F w/EF65162 battery
• -20 °C to +70 °C /-4 °F to 158 °F w/CR2032 battery
• Accuracy:
• ±0.5 °C 0 to 50 °C / 32 °F to 122 °F
• ±2 °C –20 to 85 °C / -4 °F to 185 °F
• Resolution: 0.06 °C / 0.11 °F
• Clock Accuracy: ± 1 minute/year

*Specifications are subject to change without notice.

Track-It™ DataLogger Software

Track-It DataLogger Software is a powerful Windows-based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation, and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm setpoints, engineering units, start recording triggers, and LCD.

View a numerical data table or graphical representation of data readings relative to time. Use the such as zoom, cursor, min. and max to examine and analyze the record. Track-It Software turns your PC into a real-time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one-click export function to automatically export stored data into an Excel spreadsheet.

This software is compatible with Windows 7/8/10, 32- and 64-bit.

Software Download

Track-It DataLogger Software
